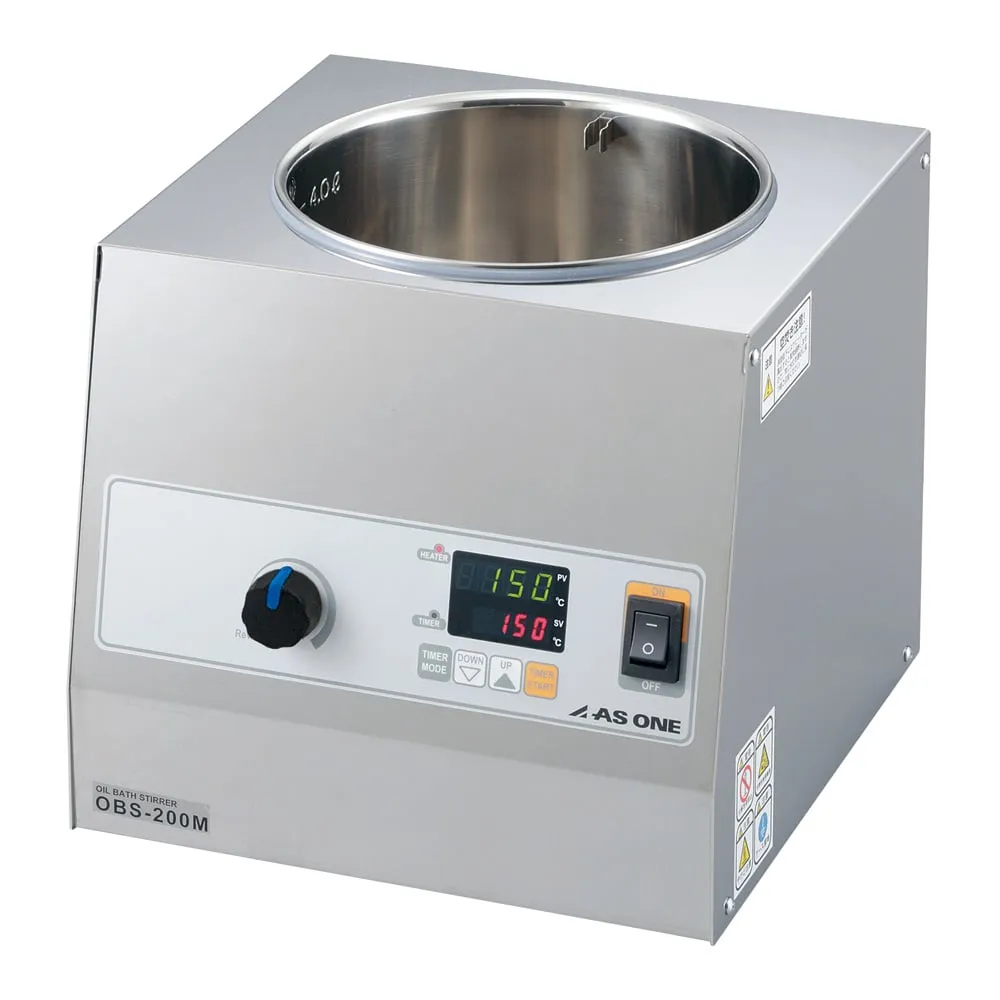

2-7939-21-22 Oil Bath Stirrer with Pre-Shipment Inspection Document OBS-200M
Product Description
Product Model: 2-7939-21-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 2-7939-21-22
Product Brand: AS ONE Corporation
Features
- Box type bath series with built-in water tank
- PID control enables high-precision and stable temperature control.
- Built-in stirrer allows stirring while heating samples or heating media.
- Operation switch adopts panel waterproof (IP67 compliant) type.
Spec
- Temperature Setting Range: Room Temperature +5~200°C
- Temperature adjustment accuracy: ±2°C
- Heater Capacity: Sheath Heater 750 W
- Temperature Sensor: K Thermocouple
- Temperature control system: microcomputer PID control
- Speed: 100~1200rpm
- Timer setting range: 0~99 hours 59 minutes
- Safety Device: Excess Temperature Rise Prevention Device, Overcurrent Prevention F***
- Material: Stainless Steel (SUS430), Tank/Stainless Steel (SUS304)
- Power: 100 VAC 50/60Hz 800 W
- Power Cord Length: 2.5 m (3P Plug)
- Water Tank Capacity: 4 L
- Mountable Thermometer Size: φ7~φ10 mm
- Body Weight: 4.6 kg
- Accessory: Stirrer (φ8 mm x 30 mm) x 1
- External Dimensions (mm): 260 x 266 (290) x 241 * Including Protrusion
- Tank Inner Dimension (mm): φ180 x 180
- *When stirring the sample directly, please *** a container of φ100 mm or less without using a drainboard.
- *Drainboard is not included.
- This product can provide inspection and inspection services. Please contact us.
- *The inspection and inspection service is a service that inspects the control system (internal temperature measurement, etc.) and the electric locomotive at the time of shipment or at the customer's site, and issues inspection reports.
