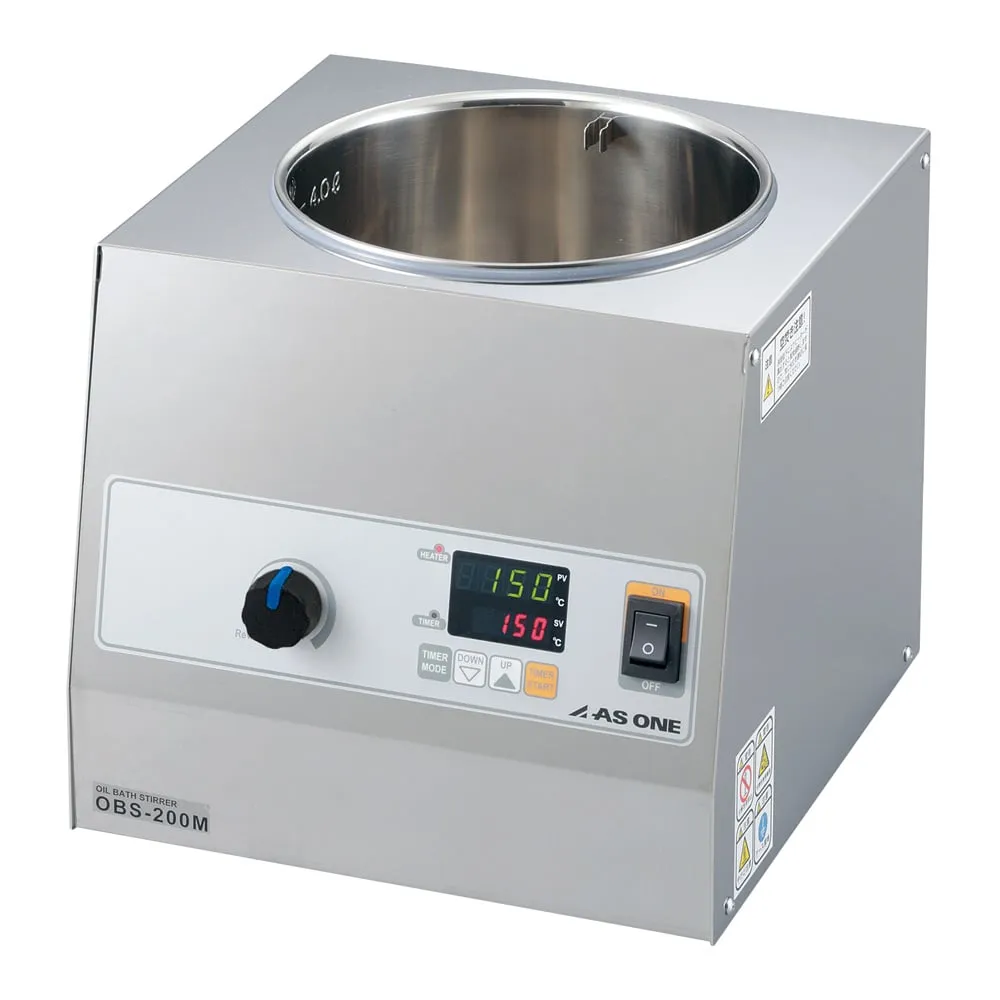

2-7939-21 Oil Bath Stirrer OBS-200M
Product Description
Product Model: 2-7939-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 2-7939-21
Product Brand: AS ONE Corporation
Features
- Box type bus series with built-in water tank
- PID control provides stable temperature control with high accuracy.
- Built-in stirrer allows stirring while heating samples or hot media.
- The operation switch is panel waterproof (IP67 compliant).
Spec
- Temperature settings range: Room temperature +5 - 200℃
- Temperature display precision: +/- 2℃
- Heater capacity: Sheathed heater 750W
- Temperature sensor: K class thermocouple
- Temperature control system: Microcomputer PID control
- Rotation speed: 100 - 1200rpm
- Timer setting range: 0 - 99 hours 59 minutes
- Safety device: Temperature excessive rise prevention device, overcurrent prevention f***
- Material: Stainless steel (SUS430), Tank/stainless steel (SUS316)
- Power supply: 100VAC 50/60Hz 800W
- Power cord length: 2.5m (3P plug)
- Water tank volume: 4L
- Attachable thermometer size: φ7 - φ10mm
- Body weight: 4.6kg
- Accessories: Stir bar (φ8mm x 30mm) x 1 pc, 2P-3P conversion adapter
- Outer dimension (mm): 260 x 266 (290) *1 x 241
- Chamber dimensions (mm): φ180 x 180
- *When samples are stirred directly, *** containers of φ100mm or less instead of the duckboard. *1 ( ) is the dimension including protrusions.
- Model number: OBS-200M
