Features

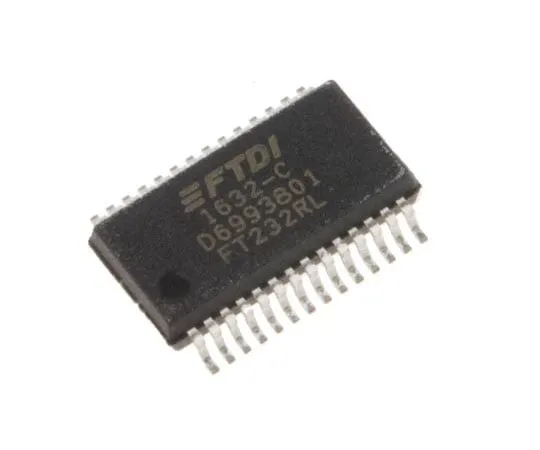

• FT232R - USB to Serial UART with Clock Generator, FTDI Chip. The FTDI Chip FT232R is a USB to serial UART interface with optional clock generator output. Asynchronous and synchronous bit bang interface modes are also available. Together with EEPROM, clock circuit and USB resistors effectively makes it a "3 in 1" chip for some applications. The internally generated clock (6 MHz, 12 MHz, 24 MHz, and 48 MHz) can be ***d to drive a microcontroller or external logic. A unique number, the FTDIChip-ID, is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle. It can then be ***d to protect customer application software from being copied. Royalty-free drivers for the most common operating systems are available from FTDI website. http://www.ftdichip.com The FT232R is available in compact 28-pin SSOP (RS ; 406-580 406-580 ) and 32-pin QFN (RS ; 730-0168 730-0168 ) packages. Features ; Benefits. Single chip USB to asynchronous serial data transfer interface. Entire USB protocol handled on the chip. No USB-specific firmware programming required. Fully integrated 1024-bit EEPROM storing device descriptors and CBUS I/O configuration. Fully integrated USB termination resistors. Fully integrated clock generation with no external crystal required plus optional clock output Data transfer rates from 300 Baud to 3 MBaud (RS422, RS485, RS232) at TTL levels. 128 B receive buffer and 256 B transmit buffer utilising buffer smoothing technology to allow for high data throughput. Applications. USB Industrial Control USB bar code readers USB Digital camera interface USB wireless modems PDA to USB Transfers USB Card readers USB FLASH card readers and writers USB Audio and low bandwidth video data transfer
