Electronic/Electrical Parts and Controll Equipments

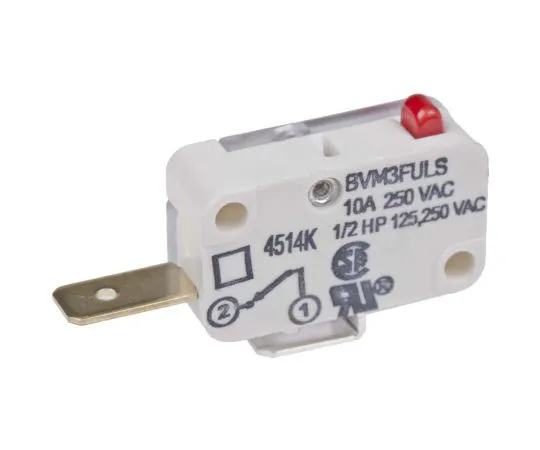

63-7354-01 SPST-NC Plunger Microswitch, 10 A @ 250 V ac 42680
Product Description
Product Model: 63-7354-01Product Brand: Saia-Burgess Fe […]
Contact Us
Product Details
Product Model: 63-7354-01
Product Brand: Saia-Burgess
Features
- UL; CSA. Saia-Burgess Failsafe, Positive Break. The action of the switch ensures the SPST-NC contacts are forced open even in the event of welding Contact Material: Ag + AgCdO Faston terminals 6.3 x 0.8mm Plunger, lever and roller lever options Case material: Glass Fibre Reinforced Polyamide (PA 6.6) Dimensions: H15.9mm x W10.1mm x D28mm
Spec
- Quantity:1bag(50pieces)
- Actuator Type : Plunger
- Terminal Type : Tab
- Contact Current Rating : 10 A @ 250 V ac
- Contact Configuration : SPST-NC
- IP Rating : IP40
- Operating Force : 4.5 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Contact Material : Silver (Stationary); Silver Nickel (Movable)
- Case Material : Glass Fibre Reinforced Nylon
- Mechanical Life : 10^6Operations
- Release Force : 4.8N
- Operating Temperature Range : -40 → +85°C
- CODE No.:173-9320
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4959-06 Vishay Tantalum Capacitor 10μF 16V dc MnO2 Solid ±10% Tolerance 293D Series 293D106X9016A2TE3
model: 63-4959-06
brand: Vishay
Electronic/Electrical Parts and Controll Equipments
63-5172-70 TE Connectivity EconoSeal J Series Wire Seal for *** with Automotive Connectors 2822354-1
model: 63-5172-70
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
63-4910-33 UPC4574GR-9LG-E1-A Renesas Electronics, Op Amp, 14MHz, 14-Pin TSSOP UPC4574GR-9LG-E1-A
model: 63-4910-33
brand: Renesas Electronics
Electronic/Electrical Parts and Controll Equipments

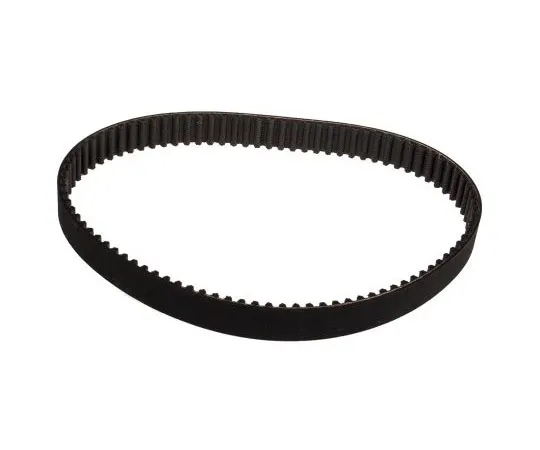

63-7569-96 Contitech 450 5M 15, Timing Belt, 90 Teeth, 450mm Length X 15mm Width 450 5M 15
