Electronic/Electrical Parts and Controll Equipments

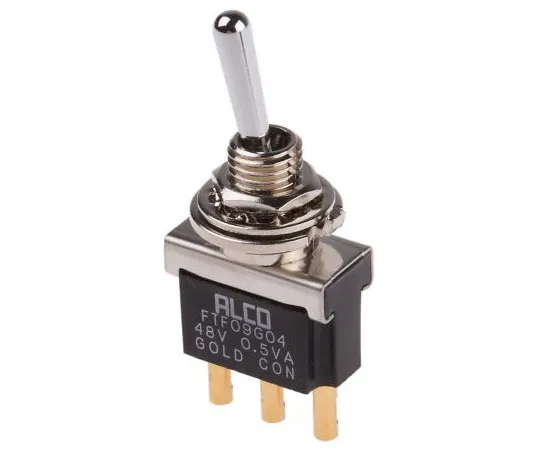

63-7353-75 1P on-(on) gold cont toggle switch,14mA FTF09G04
model:
63-7353-75
brand:
TE Connectivity
Product Description
Product Model: 63-7353-75Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7353-75
Product Brand: TE Connectivity
Features
- CSA. Care should be taken when soldering not to overheat the switch assembly For biased switches '(on)' refers to momentary 'on' position. Toggle Switches, Min, Professional. Slow make-and-break action Chrome-plated lever Solder bucket terminals A waterproof cover stock no. ; 321-212 321-212 is available (see accessories) Silver contacts apart from stock nos. ; 317-077 317-077 ; 317-106 317-106 ; 317-099 317-099 ; 317-112 317-112 ; 317-128 317-128 and ; 317-083 317-083 which have gold contacts 0.4VA max load Glass Filled Polyester case
Spec
- Quantity:1box(100pieces)
- Contact Configuration : Single Pole Double Throw (SPDT)
- Switch Operation : (On)-On
- Contact Current Rating : 14 mA @ 28 V dc
- Mounting Type : Panel Mount
- Terminal Type : Through Hole
- Panel Cut Out Diameter : 6.2mm
- Actuator Length : 16.5mm
- Actuator Material : Chrome Plated Brass
- Contact Resistance : 20mΩ
- Standards Met : CSA Recognised, RoHS, UL 94V-0
- CODE No.:163-8523
