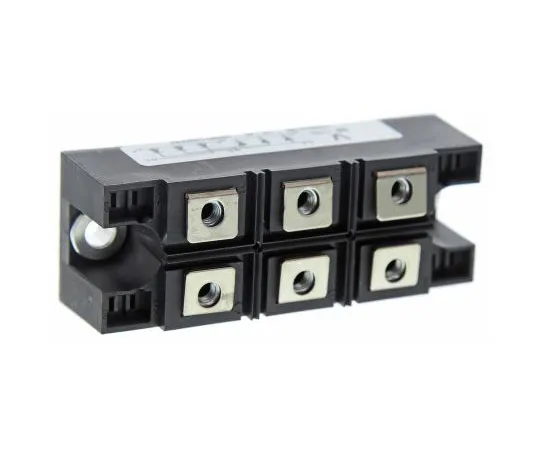

63-7353-64 Vishay VS-160MT120KPBF, 3-phase Bridge Rectifier Module, 200A 1200V, 6-Pin INT-A-PAK VS-160MT120KPBF
Product Description
Product Model: 63-7353-64Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7353-64
Product Brand: Vishay
Features
- UL file E78996. Three Phase Bridge Rectifiers with Screw Terminals, VS-160MT Series, Vishay Semiconductor. Industry standard INT-A-PAK power module High thermal conductivity package, electrically insulated case Excellent power volume ratio Isolating voltage 4000Vrms
Spec
- Quantity:1box(15pieces)
- Bridge Type : Three Phase
- Peak Average Forward Current : 200A
- Peak Reverse Repetitive Voltage : 1200V
- Mounting Type : Panel Mount
- Package Type : INT-A-PAK
- Pin Count : 6
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 1.5kA
- Maximum Operating Temperature : +60 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 1.49V
- Peak Reverse Current : 10mA
- Length : 94mm
- Width : 35mm
- CODE No.:169-5780
