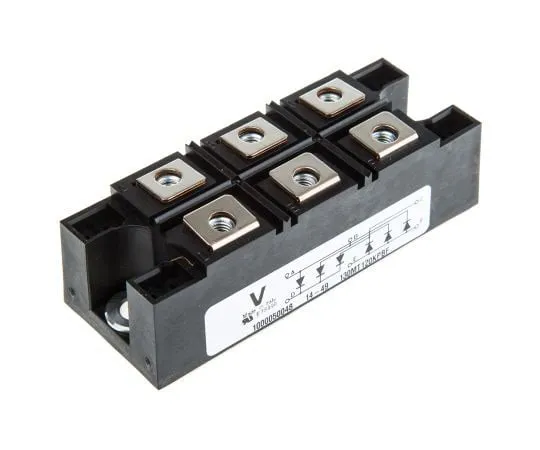

63-7353-61 Vishay VS-130MT120KPBF, 3-phase Bridge Rectifier Module, 160A 1200V, 6-Pin INT-A-PAK VS-130MT120KPBF
Product Description
Product Model: 63-7353-61Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7353-61
Product Brand: Vishay
Features
- UL file E78996. Three Phase Bridge Rectifiers with Screw Terminals, VS-130MT Series, Vishay Semiconductor. Industry standard INT-A-PAK power module High thermal conductivity package, electrically insulated case Excellent power volume ratio Isolating voltage 4000Vrms
Spec
- Quantity:1box(15pieces)
- Bridge Type : Three Phase
- Peak Average Forward Current : 160A
- Peak Reverse Repetitive Voltage : 1200V
- Mounting Type : Panel Mount
- Package Type : INT-A-PAK
- Pin Count : 6
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 1.18kA
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 1.63V
- Peak Reverse Current : 10mA
- Length : 94mm
- Dimensions : 94 x 35 x 30mm
- CODE No.:169-5777
