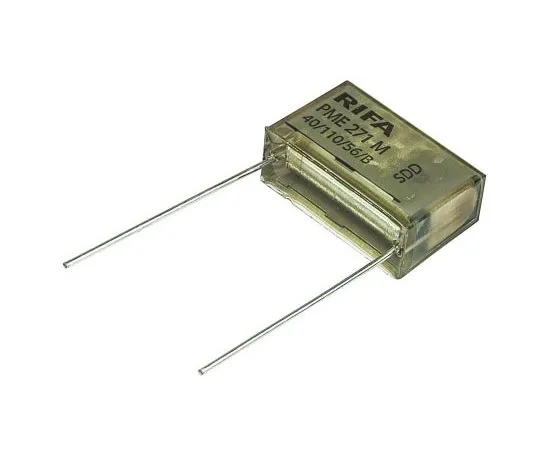

63-7352-61 KEMET Paper Capacitor 150nF 275V ac ±10% Tolerance PME271M Through Hole +110°C PME271M615KR30
Product Description
Product Model: 63-7352-61Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-7352-61
Product Brand: KEMET
Features
- Capacitors are designed for connecting directly across a mains supply but should NOT be ***d in positions where failure of a capacitor would expose anybody to electric shock. EN132400, SEMKO, NEMKO, DEMKO, FIMKO, VDE, SEV, OVE, IMQ, UL. PME 271M Metallised Paper. Highest possible safety regarding active and passive flammability due to metallised paper construction High dV/dt and excellent self healing properties ensuring long life when subject to frequent over voltages Encapsulation meets UL94-0
Spec
- Quantity:1bag(200pieces)
- Capacitance : 150nF
- Voltage : 275V ac
- Series : PME271M
- Lead Pitch : 20.3mm
- Tolerance Minus : -10%
- Tolerance Plus : +10%
- Tolerance : ±10%
- Suppression Class : X2
- Mounting Type : Through Hole
- Length : 24mm
- Height : 15mm
- Depth : 9mm
- Dimensions : 24 x 9 x 15mm
- Lead Diameter : 0.8mm
- CODE No.:173-4151
