Electronic/Electrical Parts and Controll Equipments

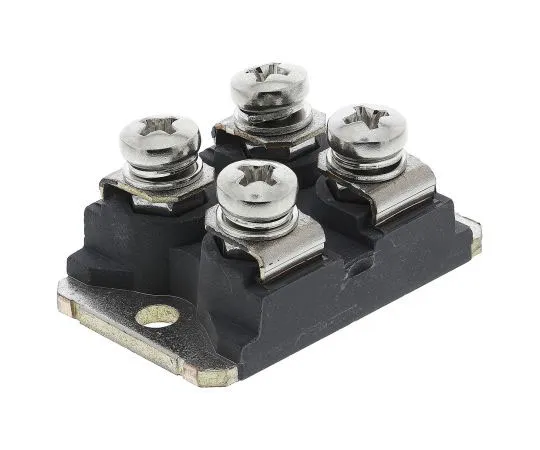

63-7352-21 IXYS VBO40-12NO6, Bridge Rectifier Module, 40A 1200V, 4-Pin SOT-227B VBO40-12NO6
Product Description
Product Model: 63-7352-21Product Brand: IXYS Features U […]
Contact Us
Product Details
Product Model: 63-7352-21
Product Brand: IXYS
Features
- UL E72873. Bridge Rectifier Module with Screw Terminals, VBO40 Series, IXYS. Package with Direct Copper Bonding (DCB) isolated Very low leakage current Very low forward voltage drop Improved thermal behaviour
Spec
- Quantity:1box(10pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 40A
- Peak Reverse Repetitive Voltage : 1200V
- Mounting Type : Panel Mount
- Package Type : SOT-227B
- Pin Count : 4
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 320A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 1.15V
- Peak Reverse Current : 300µA
- Length : 38.3mm
- Width : 25.07mm
- CODE No.:168-4454
