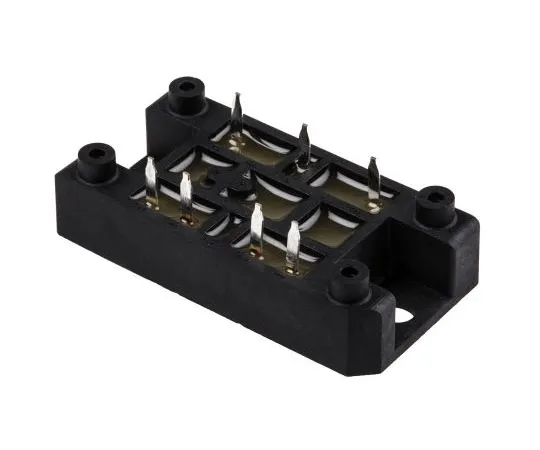

63-7352-12 IXYS VUO80-16NO1, 3-phase Bridge Rectifier Module, 82A 1600V, 5-Pin V1-A-Pack VUO80-16NO1
Product Description
Product Model: 63-7352-12Product Brand: IXYS Features U […]
Contact Us
Product Details
Product Model: 63-7352-12
Product Brand: IXYS
Features
- UL registered E 72873. Three Phase Bridge Rectifier for PCB Mounting, VUO80 Series, IXYS. Package with Direct Copper Bonding (DCB) ceramic Reduced weight Improved temperature and power cycling Very low forward voltage drop Very low leakage current Soldering pins for PCB mounting
Spec
- Quantity:1box(24pieces)
- Bridge Type : Three Phase
- Peak Average Forward Current : 82A
- Peak Reverse Repetitive Voltage : 1600V
- Mounting Type : Panel Mount
- Package Type : V1-A-Pack
- Pin Count : 5
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 640A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 1.5V
- Peak Reverse Current : 300µA
- Length : 63mm
- Width : 31.6mm
- CODE No.:168-4444
