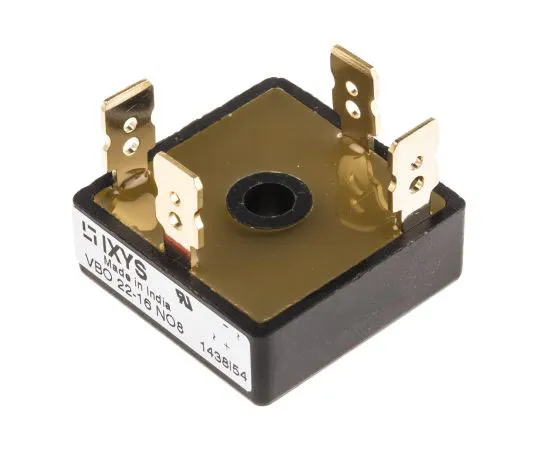

63-7352-05 IXYS VBO22-16NO8, Bridge Rectifier Module, 17A 1600V, 4-Pin FO B B VBO22-16NO8
Product Description
Product Model: 63-7352-05Product Brand: IXYS Features U […]
Contact Us
Product Details
Product Model: 63-7352-05
Product Brand: IXYS
Features
- UL registered E 72873. Bridge Rectifier Module with Push-on Terminals, VBO2x Series, IXYS. Very low leakage current Very low forward voltage drop Improved thermal behaviour
Spec
- Quantity:1box(50pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 17A
- Peak Reverse Repetitive Voltage : 1600V
- Mounting Type : Screw Mount
- Package Type : FO B B
- Pin Count : 4
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 440A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 2.2V
- Peak Reverse Current : 300µA
- Length : 28.5mm
- Width : 28.5mm
- CODE No.:168-4437
