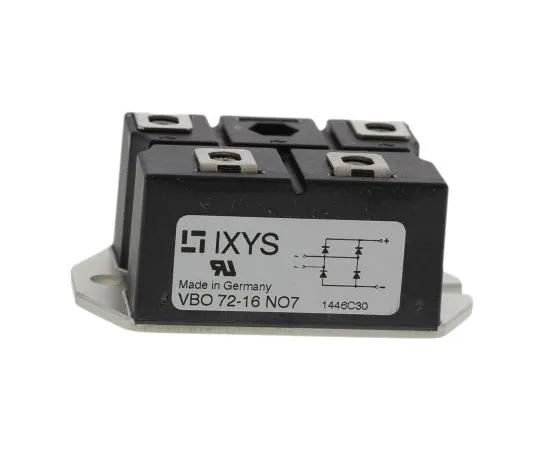

63-7351-95 IXYS VBO72-16NO7, Bridge Rectifier Module, 72A 1600V, 4-Pin PWS D VBO72-16NO7
Product Description
Product Model: 63-7351-95Product Brand: IXYS Features U […]
Contact Us
Product Details
Product Model: 63-7351-95
Product Brand: IXYS
Features
- UL. Bridge Rectifier Module with Screw Terminals, VBO72 Series, IXYS. Package with Direct Copper Bonding (DCB) ceramic Improved temperature and power cycling Very low forward voltage drop Very low leakage current
Spec
- Quantity:1box(10pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 72A
- Peak Reverse Repetitive Voltage : 1600V
- Mounting Type : Panel Mount
- Package Type : PWS D
- Pin Count : 4
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 820A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 1.6V
- Peak Reverse Current : 300µA
- Length : 72mm
- Width : 42mm
- CODE No.:168-4427
