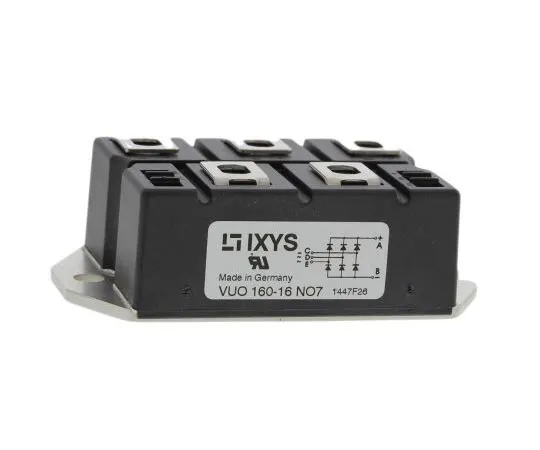

63-7351-87 IXYS VUO160-16NO7, 3-phase Bridge Rectifier Module, 175A 1600V, 5-Pin PWS E 1 VUO160-16NO7
Product Description
Product Model: 63-7351-87Product Brand: IXYS Features U […]
Contact Us
Product Details
Product Model: 63-7351-87
Product Brand: IXYS
Features
- UL registered E 72873. Three Phase Bridge Rectifier with Screw Terminals, VUO160 Series, IXYS. Package with screw terminals Isolation voltage 3000Vrms Low forward voltage drop
Spec
- Quantity:1box(5pieces)
- Bridge Type : Three Phase
- Peak Average Forward Current : 175A
- Peak Reverse Repetitive Voltage : 1600V
- Mounting Type : Panel Mount
- Package Type : PWS E 1
- Pin Count : 5
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 1.95kA
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 1.65V
- Peak Reverse Current : 300µA
- Length : 94mm
- Width : 54mm
- CODE No.:168-4410
