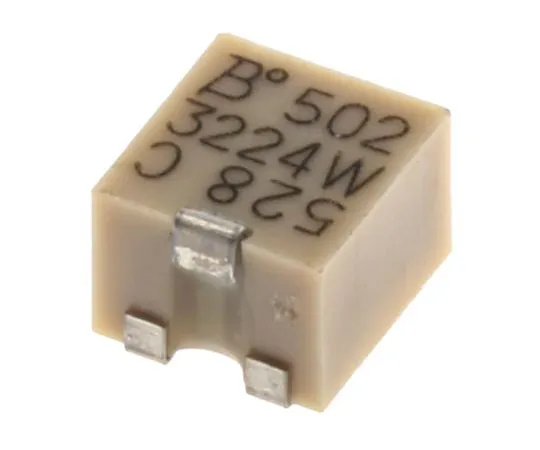

63-7351-27 5kΩ SMD Trimmer Potentiometer 0.25W Top Adjust Bourns 3224 Series 3224W-1-502E
Product Description
Product Model: 63-7351-27Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-7351-27
Product Brand: Bourns
Features
- 12-Turn 250mW 4mm 3224W Series Top Adjust. Bourns Standard 3224W Series top adjust SMD Trimpot® trimming potentiometer with a power rating @ 70 °C of 0.25W. The 3224W series cermet trimmer features a flush adjustment screw, a pick and place centring design for automated placement compatibility and is Sealed to withstand standard board wash processing. Miniature (nominal 4mm square case size) Excellent mounting efficiency Suitable for flow/reflow soldering/hand solder Meets standard EIA and EIAJ footprint Low CRV - 1%
Spec
- Quantity:1set(250pieces)
- Maximum Resistance : 5kΩ
- Mounting Type : Surface Mount
- Number of Turns : 12
- Orientation : Top Adjust
- Power Rating : 0.25W
- Series : 3224
- Termination Style : J-Hook
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 4.8mm
- Minimum Operating Temperature : -65°C
- Maximum Operating Temperature : +150°C
- CODE No.:167-3530
