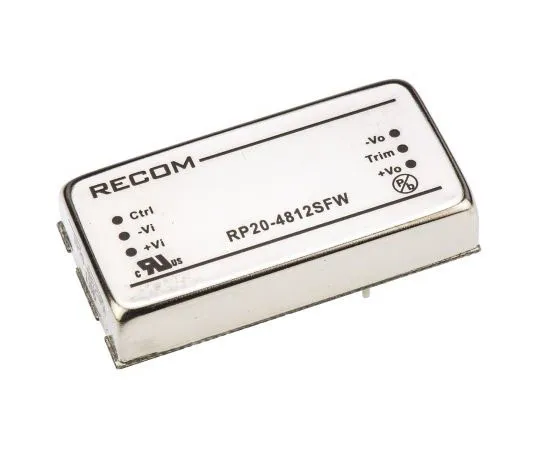

63-7350-54 Recom RP20 FW 20W Isolated DC-DC Converter Through Hole, Voltage in 18 → 75 V dc, Voltage out 12V dc RP20-4812SFW
Product Description
Product Model: 63-7350-54Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7350-54
Product Brand: Recom
Features
- Operating temperature is without de-rating. Recom 20W Single/Dual Output Regulated Isolated DC-DC Converter - RP20-FW Series. High power density Ultra-wide 4:1 input voltage range Regulated outputs 1.6kV input / output isolation Pi input filter, meets EN 55022 Class A/B with external filter Remote On/Off Control Under voltage, over voltage (single), over load and short circuit protection Shielded metal case with insulated baseplate Industry standard pin-out
Spec
- Quantity:1set(9pieces)
- Output Voltage : 12V dc
- Input Voltage Range : 18 → 75 V dc
- Input Voltage Nominal : 48 V dc
- Isolation Voltage : 1.6kV
- Power Rating : 20W
- Output Current : 1.67A
- Mounting Type : Through Hole
- Number of Outputs : 1
- Load Regulation : ±0.5%
- Maximum Temperature : +105°C
- Depth : 10.2mm
- CODE No.:166-9082
