Electronic/Electrical Parts and Controll Equipments

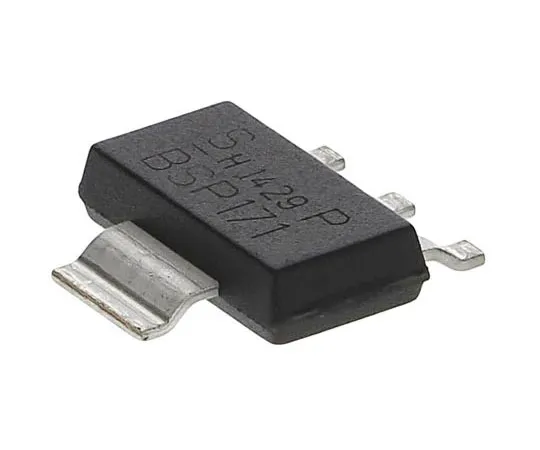

63-7350-29 BSP171PH6327XTSA1 P-Channel MOSFET Transistor, 1.9 A, 60 V SIPMOS, 3 + Tab-Pin SOT-223 Infineon BSP171PH6327XTSA1
Product Description
Product Model: 63-7350-29Product Brand: Infineon Featur […]
Contact Us
Product Details
Product Model: 63-7350-29
Product Brand: Infineon
Features
- Infineon SIPMOS® P-Channel MOSFETs. The Infineon SIPMOS ® small Signal P- channel MOSFETs have several features which may include enhancement mode, continuous drain current some as low as -80A plus a wide operating temperature range. The SIPMOS Power transistor can be ***d in a variety of applications including Telecom, eMobility, Notebooks, DC/DC devices as well as the automotive industry.. · AEC Q101 Qualified (Please refer to datasheet) · Pb-free lead plating, RoHS compliant
Spec
- Quantity:1set(1000pieces)
- Channel Type : P
- Maximum Continuous Drain Current : 1.9 A
- Maximum Drain Source Voltage : 60 V
- Maximum Drain Source Resistance : 300 mΩ
- Maximum Gate Threshold Voltage : 2V
- Minimum Gate Threshold Voltage : 1V
- Maximum Gate Source Voltage : -20 V, +20 V
- Package Type : SOT-223
- Mounting Type : Surface Mount
- Pin Count : 3 + Tab
- Channel Mode : Enhancement
- Category : Small Signal
- Maximum Power Dissipation : 1.8 W
- Minimum Operating Temperature : -55 °C
- CODE No.:911-4791
