Electronic/Electrical Parts and Controll Equipments

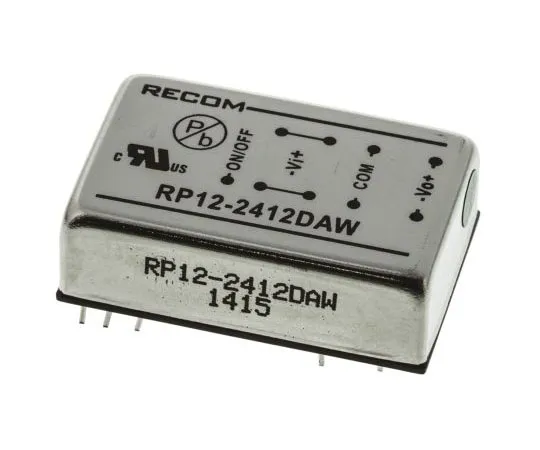

63-7350-21 Recom RP12 AW 12W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out ±12V dc RP12-2412DAW
Product Description
Product Model: 63-7350-21Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7350-21
Product Brand: Recom
Features
- Operating temperature is without de-rating. Recom 12W Single/Dual Output Regulated Isolated DC-DC Converter - RP12-AW Series. High power density Ultra-wide 4:1 input voltage range Regulated outputs 1.6kV input / output isolation Pi input filter, meets EN 55022 Class A/B with external filter Remote On/Off Control Under voltage, over voltage (single), over load and short circuit protection Shielded metal case with insulated baseplate 24-pin DIP with industry standard pin-out
Spec
- Quantity:1set(7pieces)
- Output Voltage : ±12V dc
- Input Voltage Range : 9 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1.6kV dc
- Power Rating : 12W
- Output Current : ±500mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Package : DIP
- Minimum Temperature : -40°C
- Maximum Temperature : +65°C
- Series : RP12 AW
- CODE No.:162-2728
