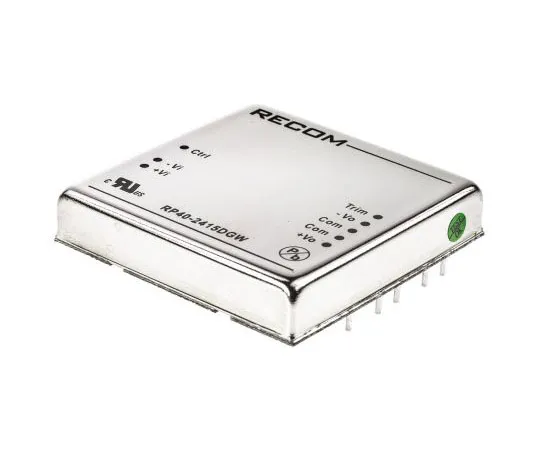

63-7350-15 Recom RP40 GW 40W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out ±15V dc RP40-2415DGW
Product Description
Product Model: 63-7350-15Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7350-15
Product Brand: Recom
Features
- Operating temperature is without derating. Recom 40W Single/Dual Output Regulated Isolated DC-DC Converter - RP40-GW Series. High power density Ultra-wide 4:1 input voltage range Regulated outputs 1.6kV input / output isolation Pi input filter, meets EN 55022 Class A/B with external filter Remote On/Off Control Over voltage, over load, over temperature and short circuit protection Shielded metal case with insulated baseplate
Spec
- Quantity:1set(4pieces)
- Output Voltage : ±15V dc
- Input Voltage Range : 9 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1.6kV dc
- Power Rating : 40W
- Output Current : ±1.33A
- Mounting Type : Through Hole
- Number of Outputs : 2
- Minimum Temperature : -40°C
- Maximum Temperature : +105°C
- Series : RP40 GW
- CODE No.:166-8942
