Electronic/Electrical Parts and Controll Equipments

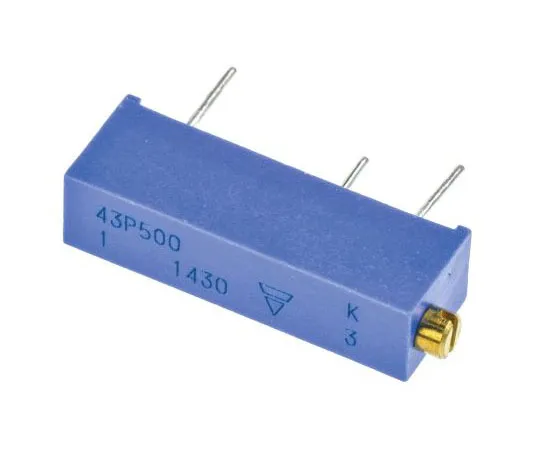

63-7349-77 50Ω Through Hole Trimmer Potentiometer 0.5W Side Adjust Vishay 43P Series M43P500KB40
Product Description
Product Model: 63-7349-77Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7349-77
Product Brand: Vishay
Features
- 19mm (3/4in.) 500mW Rectangular End Adjust 43P Series Standard. Unique slider block for excellent setability Multi-finger wiper to minimise CRV Sealed to withstand immersion board washing Moulded body with built-in standoffs Wiper idles at *** of travel Panel mounting adaptor available, stock no. < 855-305') 855-305/
Spec
- Quantity:1box(200pieces)
- Maximum Resistance : 50Ω
- Mounting Type : Through Hole
- Number of Turns : 20
- Orientation : Side Adjust
- Power Rating : 0.5W
- Series : 43P
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : -100 → +200ppm/°C
- Shaft Diameter : 2.5 mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:169-3033
