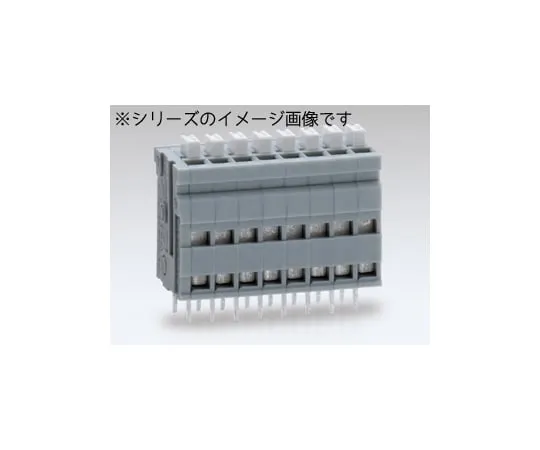

63-3129-71 Through-Type Screwless Terminal Block 50 V -3 A (Domestic) 10 Pole ML700NV10P
Product Description
Product Model: 63-3129-71Product Brand: SATO PARTS CO., […]
Contact Us
Product Details
Product Model: 63-3129-71
Product Brand: SATO PARTS CO., LTD.
Features
- "Screwless terminal block" is a terminal block that does not require connection screws.
- By removing the covering of the wire and connecting it to the terminal block with one touch, the workability of the connection is improved. To connect or disconnect wires, simply insert or pull the wire into the insertion hole while holding down the button. No special tool is required.
- They are for panel mounting, board mounting, relay, etc., and some have hole diameters that can be mounted on a universal board.
- Figure 1 shows the connection procedure. You can *** your finger to operate the button, but using a flathead screwdriver makes it easy to work.
- As shown in Fig. 2, there is a strip gauge next to the terminal block to guide the length of the wire.
Spec
- Content: Penetrating screwless terminal block
- Rating: 50 V -3 A
- Number of poles: 10
- Terminal fittings: PC terminal, standard stripped wire length 9 ~ 10 mm
- Pitch between terminals: 2.54 mm
- Recomm***ed compatible tool: flat-blade screwdriver (Shaft diameter phi 3, blade width 2.6)
- Wire insertion direction: Top
- Number of pieces: 1
