63-7344-86 ON Semiconductor, 13V Zener Diode 5% 1 W Through Hole 2-Pin DO-41 BZX85C13
model:
63-7344-86
brand:
ON Semiconductor
Product Description
Product Model: 63-7344-86Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-7344-86
Product Brand: ON Semiconductor
Features
- Zener Diodes 1W, BZX85C Series, Fairchild Semiconductor. ON Semiconductor BZX85C series is a series of 1-Watt Zenor diodes that feature excellent operating characteristics and tight limits which reflect the superior capabilities of silicon oxide passivated junctions. These Diodes are axial leaded with a sealed glass package that will offer protection in all common environmental conditions. Features. -Zener Voltage Range - 3.3 V to 85 V -ESD Rating of Class 3 -DO-41 (DO-204AL) Package -Double Slug Type Construction
Spec
- Quantity:1bag(1000pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Maximum Power Dissipation : 1 W
- Package Type : DO-41
- Zener Type : Voltage Regulator
- Zener Voltage Tolerance : 5%
- Pin Count : 2
- Test Current : 20mA
- Maximum Zener Impedance : 10Ω
- Maximum Reverse Leakage Current : 500nA
- Length : 5.2mm
- Diameter : 2.72mm
- Dimensions : 2.72 (Dia.) x 5.2mm
- Minimum Operating Temperature : -65 °C
- CODE No.:166-1927
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7354-55 Saia-Burgess 1NO/1NC Momentary Push Button Switch, IP67, 16.2 (Dia.)mm, Panel Mount, 250V ac 551015-601
model: 63-7354-55
brand: Saia-Burgess
Electronic/Electrical Parts and Controll Equipments
63-6702-65 RS PRO Red Cat6 Cable, U/UTP, Male RJ45/Male RJ45, Terminated, 3m 556-336
model: 63-6702-65
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

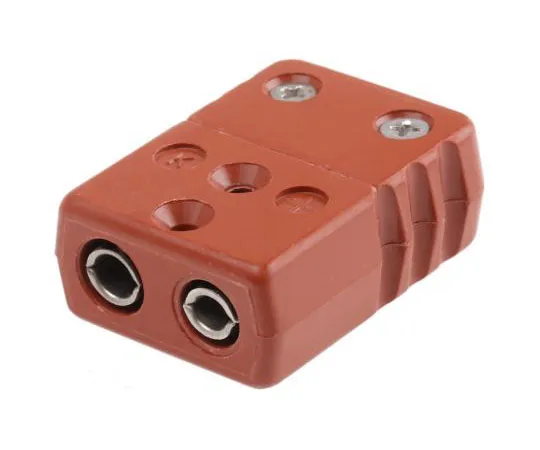

63-7507-39 RS PRO Universal Thermocouple Connector for *** with Type K Thermocouple Type K, Standard 363-0159
