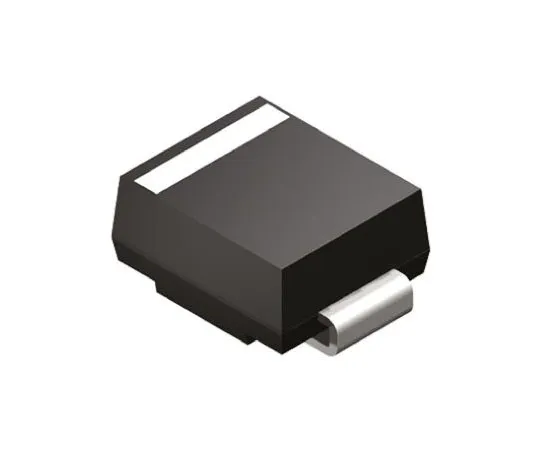

63-7343-31 ON Semiconductor SMBJ28A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA SMBJ28A
model:
63-7343-31
brand:
ON Semiconductor
Product Description
Product Model: 63-7343-31Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-7343-31
Product Brand: ON Semiconductor
Features
- Transient Voltage Suppressors SMT Unidirectional 600W, SMBJ Series, Fairchild Semiconductor. Glass-Passivated Junction 600W Peak Pulse Power Capability Excellent Clamping Capability Low-Incremental Surge Resistance Fast Response Time UL Certificate #E258596 UL94V-0 Flammability Classification
Spec
- Quantity:1set(3000pieces)
- Direction Type : Uni-Directional
- Maximum Clamping Voltage : 45.4V
- Minimum Breakdown Voltage : 31.1V
- Mounting Type : Surface Mount
- Package Type : DO-214AA (SMB)
- Maximum Reverse Stand-off Voltage : 28V
- Pin Count : 2
- Peak Pulse Power Dissipation : 600W
- Maximum Peak Pulse Current : 13.3A
- Number of Elements per Chip : 1
- Minimum Operating Temperature : -65 °C
- Maximum Operating Temperature : +150 °C
- Height : 2.237mm
- CODE No.:166-2928
