Electronic/Electrical Parts and Controll Equipments
63-7332-92 Thermal Interface Pad, Thin Film Polyimide, 1.3W/m·K, 28.96 x 20.57mm 0.152mm, Self-Adhesive SPK10-0.006-AC-122
Product Description
Product Model: 63-7332-92Product Brand: Bergquist Featu […]
Contact Us
Product Details
Product Model: 63-7332-92
Product Brand: Bergquist
Features

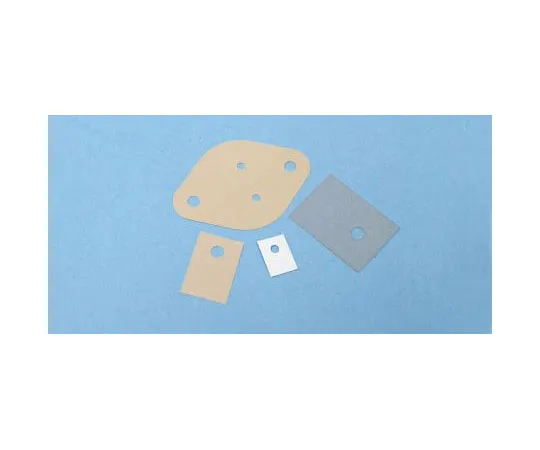

- Sil-Pad K10 insulators. High-performance insulators, which combine Kapton MT type polyamide film with the boron nitride reinforced silicon elastomer. Electrical insulators and thermal conductors. These replace ceramic insulators ***d when mechanical resistance is required. Overcomes the risks of breaking. Very good electrical insulation behaviour.
Spec
- Quantity:1bag(10pieces)
- Dimensions : 28.96 x 20.57mm
- Thickness : 0.152mm
- Length : 28.96mm
- Width : 20.57mm
- Thermal Conductivity : 1.3W/m·K
- Material : Thin Film Polyimide
- Self-Adhesive : Yes
- Minimum Operating Temperature : -60°C
- Maximum Operating Temperature : +180°C
- Hardness : Shore A 90
- Material Trade Name : Sil-Pad K10
- Operating Temperature Range : -60 → +180 °C
- CODE No.:283-3717
