Electronic/Electrical Parts and Controll Equipments
63-7332-87 Thermal Interface Pad, Thin Film Polyimide, 0.9W/m·K, 28.96 x 20.57mm 0.152mm, Self-Adhesive SPK4-0.006-AC-122
Product Description
Product Model: 63-7332-87Product Brand: Bergquist Featu […]
Contact Us
Product Details
Product Model: 63-7332-87
Product Brand: Bergquist
Features

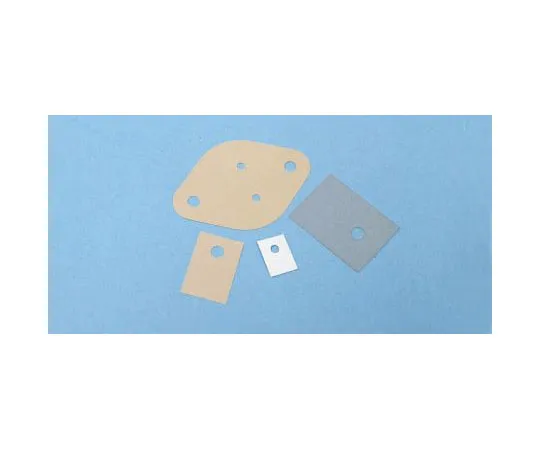

- Sil-Pad K4 insulators. These combine the thermal transfer properties of the Sil-Pad rubber with the high dielectric strength and excellent physical resistance of Kapton MT film. Electrical insulators and thermal conductors. Durable insulators. Resistant to high voltages and do not require thermal grease to provide heat transfer.
Spec
- Quantity:1bag(50pieces)
- Dimensions : 28.96 x 20.57mm
- Thickness : 0.152mm
- Length : 28.96mm
- Width : 20.57mm
- Thermal Conductivity : 0.9W/m·K
- Material : Thin Film Polyimide
- Self-Adhesive : Yes
- Minimum Operating Temperature : -60°C
- Maximum Operating Temperature : +180°C
- Hardness : Shore A 90
- Material Trade Name : Sil-Pad K4
- Operating Temperature Range : -60 → +180 °C
- CODE No.:283-3694
