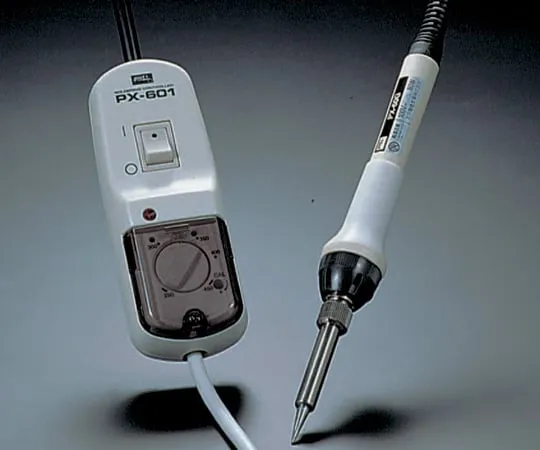

6-5004-01 Soldering Iron with Built-In Temperature Control Circuit PX-601 PX-601
Product Description
Product Model: 6-5004-01Product Brand: TAIYO ELECTRIC I […]
Contact Us
Product Details
Product Model: 6-5004-01
Product Brand: TAIYO ELECTRIC IND.CO.,LTD. (goot)
Features
- The temperature can be set freely between 250~450°C.
- A quick start circuit is adopted that quickly rises from the power ON to the set temperature.
- With terminals for easy measurement of leakage current and insulation resistance.
Spec
- Power supply: AC100V 50/60Hz 85W
- Temperature continuously variable range: 250 - 450℃
- Insulation resistance (500VDC): 100MΩ or higher
- Code length between iron unit to control unit: 1.2m
- Power cord length: 1.5m (3P type)
- Weight (iron unit, control unit): 41・75g
- Model number: PX601
- Size (iron unit/control unit) (mm): Length 195/48 x 130 x 31
