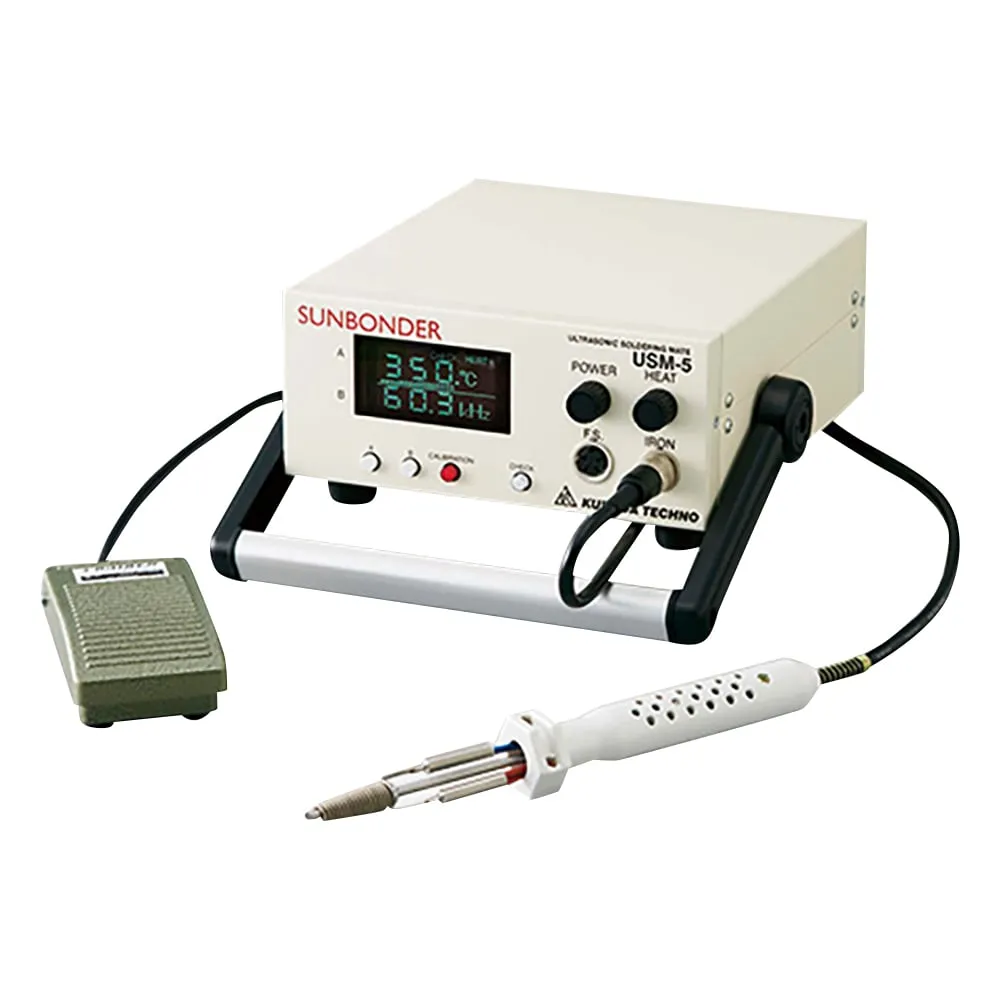

1-6859-21 Ultrasonic Soldering Device USM-560
model:
1-6859-21
category:
dissectiontoolsandsupplies
Product Description
Product Model: 1-6859-21 Features High-quality solderin […]
Contact Us
Product Details
Product Model: 1-6859-21
Features
- High-quality soldering is possible by generating ultrasonic waves from the tip of the trowel.
- You do not need to *** flux.
- This product can be soldered directly to glass, ceramics, aluminum, stainless steel, etc., in combination with the special solder "Cerasolzer" (sold separately).
- Since oscillation frequency and effective output are monitored, stable work is possible.
Spec
- Oscillation frequency: 60kHz
- Maximum output: Rating 15W (arbitrary variable)
- Temperature settings range: 200 - 500℃ (10℃ intervals)
- Power supply: AC100V 50/60Hz 150W
- Cord length: Power side/2m, Iron side/2m
- Size: Body/210 x 90 x 235mm, Soldering tip/φ4mm
- Body weight: Approx 5kg
- Model number: USM-5
- Body and soldering iron set
- Sunbonder
- Accessories: Foot switch, Soldering iron stand, Spanner for replacement chip, F*** x 2 pieces
