Electronic/Electrical Parts and Controll Equipments

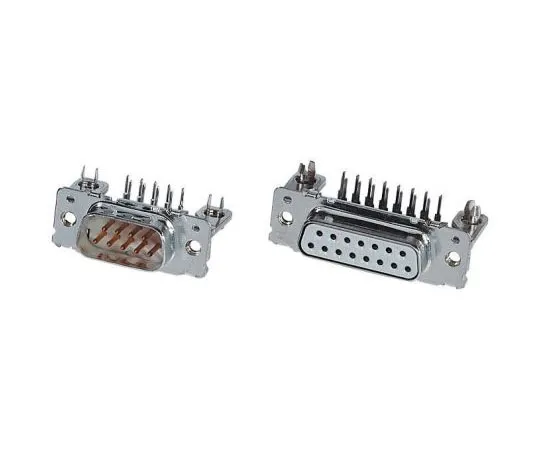

63-7330-28 TE Connectivity Amplimite HD-20 Series, 9 Way Right Angle Through Hole Eurostyle PCB D-Sub Connector Socket, 2.74mm 8-1393480-1
model:
63-7330-28
brand:
TE Connectivity
Product Description
Product Model: 63-7330-28Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7330-28
Product Brand: TE Connectivity
Features
- DIN 41652. UL, CSA. D-SUB Eurostyle Footprint HD-20 90° internal thread. Constructed to DIN 41494, 3TE module, 15.24 mm width Soldered connection with 0.7 mm bore Ø With integrated PCB mounting and earthing Nut UNC 4-40 in the metal flange Metal cover Plug-compatible with connector systems to MIL-C-24308 and DIN 41652
Spec
- Quantity:1piece
- Number of Contacts : 9
- G***er : Female
- Body Orientation : Right Angle
- Mounting Type : Through Hole
- Pitch : 2.74mm
- Mounting Hardware : 4-40 UNC Threaded Inserts, Boardlocks
- Current Rating : 2.2A
- Housing Material : Glass Fibre Reinforced PBT
- Voltage Rating : 1 kV ac
- Length : 31.19mm
- Width : 6.3mm
- Depth : 12.93mm
- Dimensions : 31.19 x 6.3 x 12.93mm
- Maximum Operating Temperature : +125°C
- CODE No.:454-3523
