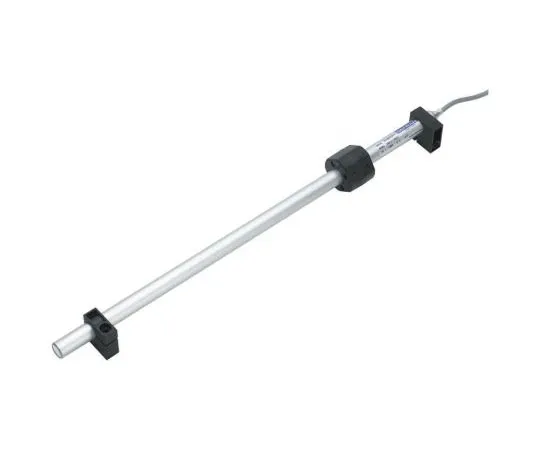

63-7330-11 Gefran Linear Transducer 350mm stroke 60 V IP67 PM-E-12-F-0350-S 0000X000XX00XXX
Product Description
Product Model: 63-7330-11Product Brand: Gefran Features […]
Contact Us
Product Details
Product Model: 63-7330-11
Product Brand: Gefran
Features
- PME12-F - linear transducer with magnetic slider carriage. Potentiometric linear transducer without pushrod External magnetic carriage operates internal slider Infinite resolution No change to electrical output signal outside of theoretical electrical path Can be ***d in pneumatic applications with operating pressure of up to max. 20 bar Output connection via 3-wire shielded cable with highly flexible PUR insulation, length 1 m
Spec
- Quantity:1piece
- Stroke : 350mm
- Supply Voltage : 60 V
- Housing Material : Anodised Aluminium
- IP Rating : IP67
- Overall Width : 430mm
- Minimum Operating Temperature : -30°C
- Maximum Operating Temperature : +100°C
- CODE No.:452-9173
