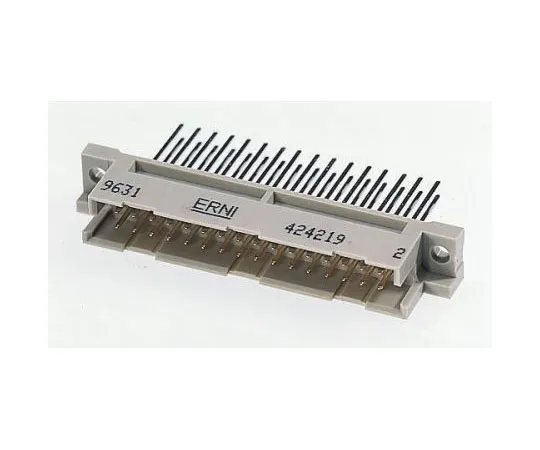

63-7328-60 ERNI 20 Way 2.54mm Pitch, Type B/3 Class C2, 2 Row, Straight DIN 41612 Connector, Socket 254370
Electronic/Electrical Parts and Controll Equipments

63-7328-60 ERNI 20 Way 2.54mm Pitch, Type B/3 Class C2, 2 Row, Straight DIN 41612 Connector, Socket 254370

model: 63-7328-60
brand: ERNI

Product Description

Product Model: 63-7328-60Product Brand: ERNI Features U […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7328-60
Product Brand: ERNI

Features

  • UL, CSA. M : male connector, F : female connector. Short type B/C, inverted Q/R. This range of DIN41612 / IEC 60603-2 Backplane / Board to Board / Wire to Board Connectors covers different connection variations. The design of these Backplane Connectors is in accordance with DIN 41612/ IEC 60603-2, for *** in 19 in. Eurocard plug-in systems providing excellent quality and reliability. Applications for these DIN41612 / IEC 60603-2 connectors include: Connection between plug-in cards and backplane wiring Connection between two PCB's arranged one above the other As a peripheral connector for external interfaces of the wiring plane. 0.8mm lead with type B, C, Q, R for all positions Pre-centering; for plug connectors with leading contacts, the male connector is pre-centred for greater security Maximum contact security and constant contact resistances thanks to two legged, opposing spring contacts Encoding; prevents incorrect plugging and consequent destruction of sensitive electronic components due to overload Coding strips do not require any additional seperator in the 19-inch rack

Spec

  • Quantity:1set(114pieces)
  • Number of Contacts : 20
  • G***er : Female
  • Number of Rows : 2
  • Body Orientation : Straight
  • Termination Method : Solder
  • Row Loading : a/b
  • Type : B/3
  • Pitch : 2.54mm
  • Contact Plating : Gold
  • Class Rating : C2
  • Current Rating : 2A
  • Contact Material : Copper Alloy
  • Maximum Contact Resistance : 20mΩ
  • Maximum Operating Temperature : +125°C
  • CODE No.:173-7767
