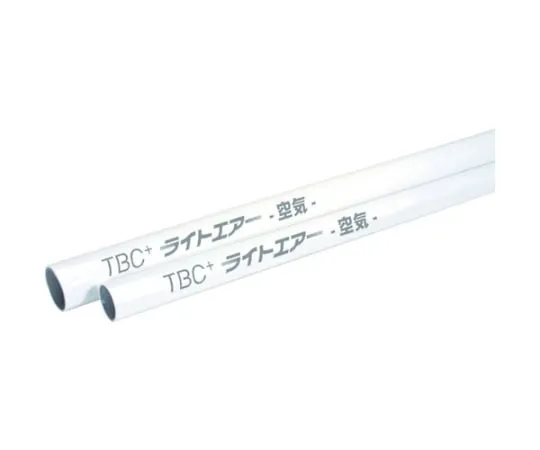

61-8856-88 Light Air Aluminum 3 Layer Pipe for Air Piping 3m (7Pcs) Outer Diameter 25mm SLC20-3M-7
Product Description
Product Model: 61-8856-88Product Brand: TABUCHI Corp. F […]
Contact Us
Product Details
Product Model: 61-8856-88
Product Brand: TABUCHI Corp.
Features
- It is easy to cut the pipe, does not require threading, and is easy to construct.
- The pipe can bend and retain its shape.
- The pipe is lightweight.
- Piping with excellent corrosion resistance.
- Easy to install piping from the compressor.
- Reduces costs compared to metal piping.
- It is recommended not only when new piping facilities are installed, but also for equipment renewal and improvement work such as extending piping from existing piping and replacing piping from tubes.
- Compressed air (for low pressure)
Spec
- Outer diameter (mm): 25
- Length (m): 3
- Nominal diameter (mm): 20
- Fluid used: Compressed air (for low pressure)
- Used temperature: 0 - 60℃
- Maximum operating pressure: Less than 1.0MPa
- Material, finishing: Polyethylene (PE)/aluminum
- Code number: 755-4419
