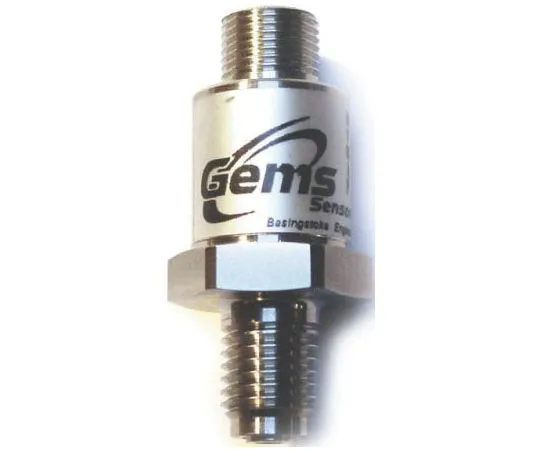

63-7326-86 Gems Sensors Gauge for Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil Pressure Sensor, 1600bar Max Pressure Reading , 8 3100B1600S2TE000
Product Description
Product Model: 63-7326-86Product Brand: Gems Sensors Fe […]
Contact Us
Product Details
Product Model: 63-7326-86
Product Brand: Gems Sensors
Features
- Pressure Transmitters - 3100 Series M12 Connections. Gems Sensors 3100 series pressure transmitters offer consistent high levels of performance, reliability and stability in a wide range of compact package sizes. They feature all stainless steel wetted parts and a wide choice of electrical outputs to suit most applications. At the heart of the 3100 series is a sputter element that also provides exceptional temperature specifications. Features and Benefits. High proof pressures. Broad choice of outputs. Operating temperature: -40°C to +120°C. Ideal for installations where space is at a premium. Stainless steel wetted parts. RoHS compliant. IP67 Rated. 0.25% FS accuracy. M12 connections
Spec
- Quantity:1piece
- Pressure Reading Type : Gauge
- Minimum Pressure Reading : 0bar
- Maximum Pressure Reading : 1600bar
- Accuracy : 0.25 %
- Output Type : Analogue
- Media Measured : Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil
- Process Connection : M12
- Analogue Output : 4 → 20 mA
- Response Time : 1 ms
- Supply Voltage : 8 → 30 V dc
- IP Rating : IP67
- Maximum Operating Temperature : +125°C
- CODE No.:455-4826
