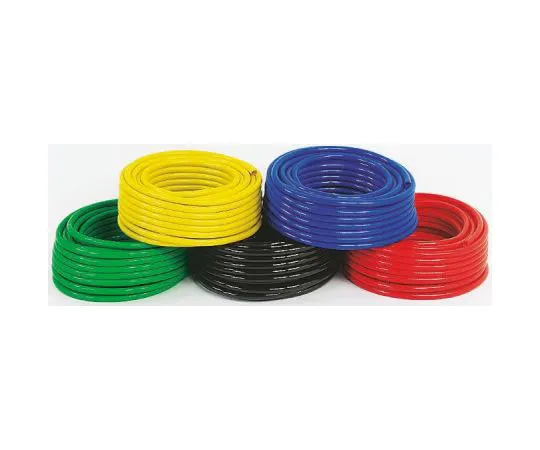

63-7323-94 RS PRO PVC Flexible Tubing, Blue, 18.5mm External Diameter, 25m Long, Reinforced, 55mm B*** Radius, Applications 339-6102
Electronic/Electrical Parts and Controll Equipments

63-7323-94 RS PRO PVC Flexible Tubing, Blue, 18.5mm External Diameter, 25m Long, Reinforced, 55mm B*** Radius, Applications 339-6102

model: 63-7323-94
brand: RS PRO

Product Description

Product Model: 63-7323-94Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7323-94
Product Brand: RS PRO

Features

  • BS6066, ISO5774. Working Pressure is at +23°C. RS Pro Multi-purpose Reinforced PVC Tubing. This clear RS Pro PVC tubing is perfect to *** in a multitude of applications, whether is DIY or commercial ***, the EC compliant low toxic hose is reliable and highly durable over time. Suitable for liquids such as water, fuels, oils and other chemicals, this RS Pro hose is also suited for *** within the food industry and can be ***d for air and gas applications. This multi-purpose, high-quality all-round performer is universally popular, especially for the conveyance of air and water. Features and Benefits. Excellent glass clear transparency for clear visibility. Good flexibility for ease of ***. Resistant to a wide range of chemicals including many acids / alkalis. Abrasion resistant. Thicker wall gives medium to heavy-duty durability for improved resistance to abrasion. Specially selected high tensile polyester fibres ***d at the optimum braid angle of 54° 44′(54.73°) creates an effective and balanced pressure hose. EC compliant for food contact applications. RoHS compliant. Manufactured from cadmium and silicone-free materials, using a specialist PVC that can reduce the taint of drinking water. Service temperature : -15°C to + 60°C. Manufactured in accordance with ISO 5774. 4:1 safety factor. Applications. Widely ***d by the caravan industry for piping water and chemicals. Popular for pharmaceutical / scientific applications for the transfer of chemicals. Air applications such as pneumatic tools. For the transfer of food substances and liquids

Spec

  • Quantity:1piece
  • Inner Diameter : 12.5mm
  • Outer Diameter : 18.5mm
  • Material : PVC
  • Colour : Blue
  • Reinforced : Yes
  • Suitable Applications : Chemical, Compressed Air, Food, Liquid, Water
  • Length : 25m
  • Minimum Operating Temperature : -15°C
  • Maximum Operating Temperature : +60°C
  • Maximum Working Pressure : 15 bar
  • B*** Radius : 55mm
  • Operating Temperature Range : -15 → +60 °C
  • CODE No.:339-6102
