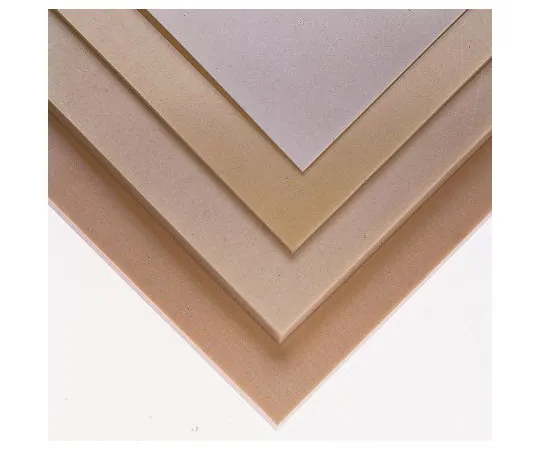

63-7323-37 Natural Cotton Laminated Plastic, 590mm x 285mm x 2mm, Epoxy Resin, Fine Weave Cotton E21776/113
Product Description
Product Model: 63-7323-37Product Brand: TufnolR Feature […]
Contact Us
Product Details
Product Model: 63-7323-37
Product Brand: TufnolR
Features
- Tufnol®, 6F/45. 6F/45 is a fine weave cotton fabric combined with modified epoxy resin to produce a rigid sheet material with outstanding electrical performance. The key benefits of this material are:. Very high resistance to electrical tracking Mechanically strong and wear resistant Resistant to a wide range of chemicals Conforms to BS2572 Type F6 and EN60893 Type EP CC 301 Can be machined to high tolerance with a good machined finish
Spec
- Quantity:1set(2pieces)
- Colour : Natural
- Length : 590mm
- Width : 285mm
- Thickness : 2mm
- Material : Laminated Plastic
- Laminated : Yes
- Laminate Material : Epoxy Resin, Fine Weave Cotton
- Density : 1.36g/cm³
- Thermal Conductivity : 0.36W/mK
- Maximum Operating Temperature : +130°C
- Impact Strength : 4.6kJ/m²
- CODE No.:484-1681
