Features

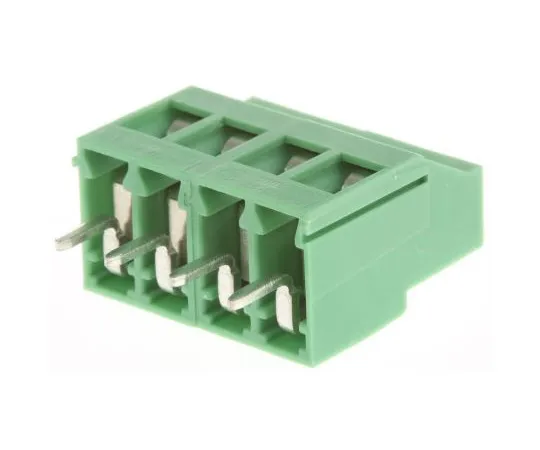

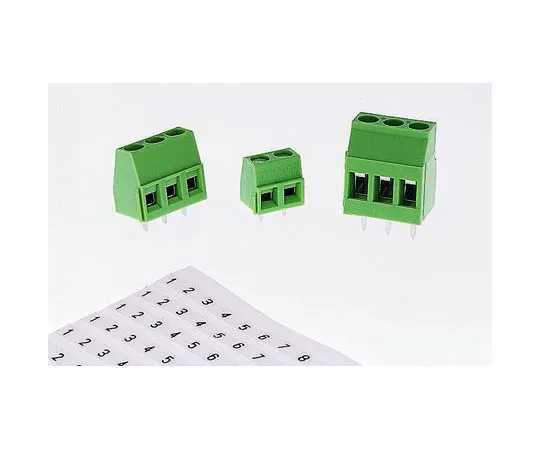

• Connection in acc. with standard EN-VDE, V0 Flammability rating according to UL 94, DIN EN 60512-5-2:2003-01. CSA, cRUus, PCT, SEV, CCA,. Stock number ; 804-4991 804-4991 has the postion number stamped on the housing and ; 883-2921 883-2921 is bridged internally. Phoenix Contact COMBICON MKDS 5.08mm PCB Terminal Blocks. The MKDS PCB terminal blocks are through hole mount, have a 5.08 mm pitch, rising cage clamp screw terminals and side interlocking. Features and Benefits. Well-known connection principle allows worldwide *** Low temperature rise, thanks to maximum contact force Allows connection of two conductors Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve Latching on the side enables various numbers of positions to be combined RoHS compliant
