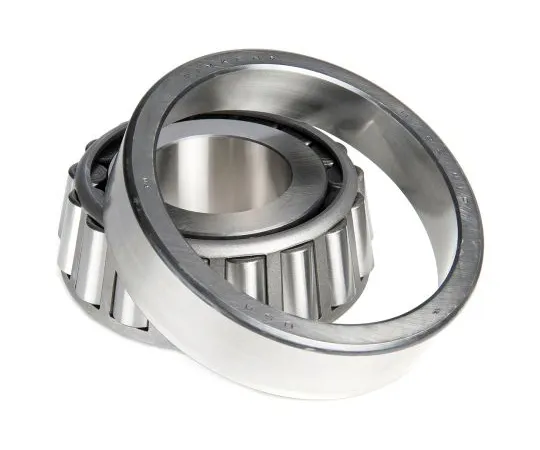

63-7047-21 Taper Roller Bearing LM501349/LM501310, 41.27mm I.D, 73.43mm O.D LM501349/LM501310
Product Description
Product Model: 63-7047-21Product Brand: Timken Features […]
Contact Us
Product Details
Product Model: 63-7047-21
Product Brand: Timken
Features
- Tapered Roller Bearings - TS (Tapered Single) Inches/Meters
- This bearing is the most basic and most widely ***d type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). They are mounted mainly as facing pairs on the shaft.
- Features and Benefits: Inches/Meters
- Integrated punched steel cage holds the roller of the cone
- Inner diameter range: 7.937 → 863.600 mm
- Outer diameter range: 31.991 → 1060.000 mm
- Single cone and cup
- Product application information
- Main applications include vehicle front wheels, differential/pinion configurations, conveyor rolls, machine tool spindles, and trailer wheels.
Spec
- Quantity:1piece
- Inside Diameter : 41.27mm
- Outside Diameter : 73.43mm
- Roller Bearing Type : Taper
- Race Width : 14.73mm
- Bore Type : Parallel
- Material : Metal
- Static Load Rating : 74200N
- Cage Material : Steel
- Number of Rows : 1
- Roller Material : Steel
- End Type : Sealed
- CODE No.:134-7450
