Features

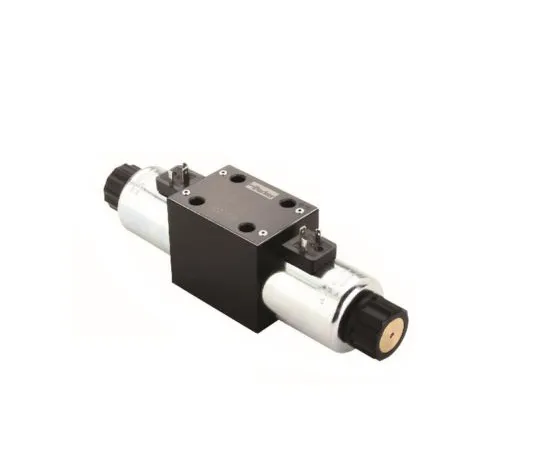

• CETOP03 Direction Control Valve
• The CETOP3 hydraulic direction control valve manufactured by Parker Hannifin is equipped with a double solenoid or a single solenoid operated by a spring return. The D1W valve provides excellent flow rate, low pressure drop and low power consumption, with a flow rate of up to 80 ml/min.
• Features and Advantages: Can be mounted in any position (horizontal recomm***ed)
• Double or single solenoid with spring return
• Flow rate: 80 ml/min, energy saving low pressure drop
• Wide range of spool types 3 and 2 position spools
• Manual solenoid override
• Ideal for *** with hydraulic oil conforming to DIN51524
• DIN NG06/CETOP 03/NFPA D03
• Maximum wire length: 50 m
• Maximum switching frequency: 15000/hour
• Maximum leakage: 10 ml/min @ 50 bar (dep***s on spool)
• Wet pin armature solenoid, screwable to tube
• 3 x 1.5 mm2 wire recomm***ed
• EN175301-803 Solenoid connection (plug sold separately)
• Application: Suitable for all industrial hydraulic applications.
