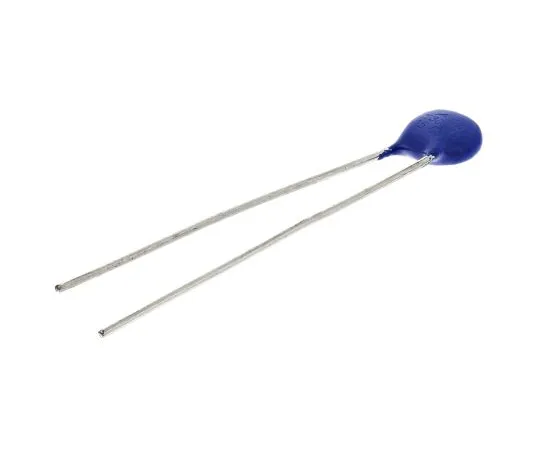

63-7040-50 Epcos Standard Series Metal Oxide Varistor 720pF 1A, Clamping 93V, Varistor 47V B72205S0300K101
Product Description
Product Model: 63-7040-50Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7040-50
Product Brand: EPCOS
Features
- UL, CSA, VDE
- Metal Oxide Varistor Standard Series
- Equipped with standard radial epoxy coated MOV and tin plated copper wire leads.
- Ceramic body coated with tin plated copper lead and epoxy resin Rated transient current (8// 20 μs) and rated energy (2 ms)
Spec
- Quantity:1bag(1000pieces)
- Varistor Voltage : 47V
- Maximum AC Voltage Rating : 30V
- Maximum DC Voltage Rating : 38V
- Clamping Voltage : 93V
- Clamping Current : 1A
- Energy : 0.9J
- Series : Standard
- Diameter : 7mm
- Maximum Surge Current : 100A
- Capacitance : 720pF
- Thickness : 3.6mm
- Dimensions : 7 (Dia.) x 3.6mm
- Lead Pitch : 5mm
- CODE No.:134-5700
