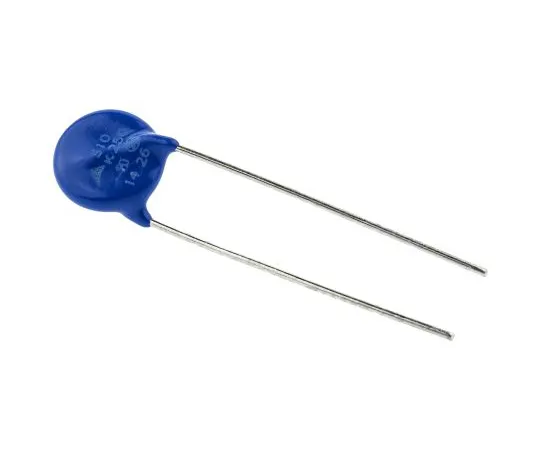

63-7040-44 Epcos Standard Series Metal Oxide Varistor 215pF 25A, Clamping 650V, Varistor 390V B72210S0251K101
Product Description
Product Model: 63-7040-44Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7040-44
Product Brand: EPCOS
Features
- UL, CSA, VDE
- Metal Oxide Varistor Standard Series
- Equipped with standard radial epoxy coated MOV and tin plated copper wire leads.
- Ceramic body coated with tin plated copper lead and epoxy resin Rated transient current (8// 20 μs) and rated energy (2 ms)
Spec
- Quantity:1bag(500pieces)
- Varistor Voltage : 390V
- Maximum AC Voltage Rating : 250V
- Maximum DC Voltage Rating : 320V
- Clamping Voltage : 650V
- Clamping Current : 25A
- Energy : 38J
- Series : Standard
- Diameter : 12mm
- Maximum Surge Current : 2500A
- Capacitance : 215pF
- Thickness : 4.8mm
- Dimensions : 12 (Dia.) x 4.8mm
- Lead Pitch : 7.5mm
- CODE No.:134-5694
