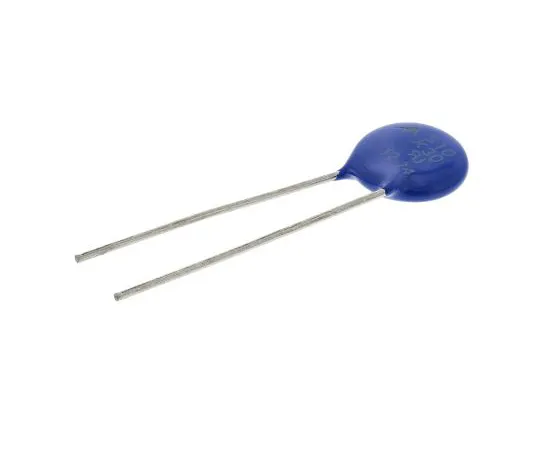

63-7040-42 Epcos Standard Series Metal Oxide Varistor 2.75nF 5A, Clamping 93V, Varistor 47V B72210S0300K101
Product Description
Product Model: 63-7040-42Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7040-42
Product Brand: EPCOS
Features
- UL, CSA, VDE
- Metal Oxide Varistor Standard Series
- Equipped with standard radial epoxy coated MOV and tin plated copper wire leads.
- Ceramic body coated with tin plated copper lead and epoxy resin Rated transient current (8// 20 μs) and rated energy (2 ms)
Spec
- Quantity:1bag(500pieces)
- Varistor Voltage : 47V
- Maximum AC Voltage Rating : 30V
- Maximum DC Voltage Rating : 38V
- Clamping Voltage : 93V
- Clamping Current : 5A
- Energy : 4.4J
- Series : Standard
- Diameter : 12mm
- Maximum Surge Current : 500A
- Capacitance : 2.75nF
- Thickness : 4.4mm
- Dimensions : 12 (Dia.) x 4.4mm
- Lead Pitch : 7.5mm
- CODE No.:134-5692
