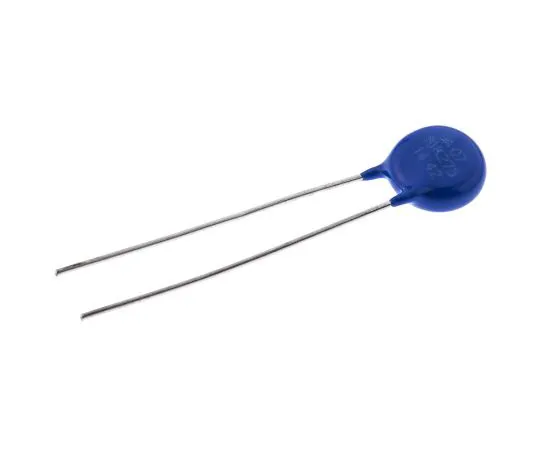

63-7040-37 Epcos Standard Series Metal Oxide Varistor 95pF 10A, Clamping 710V, Varistor 430V B72207S0271K
Product Description
Product Model: 63-7040-37Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7040-37
Product Brand: EPCOS
Features
- UL, CSA, VDE
- Metal Oxide Varistor Standard Series
- Equipped with standard radial epoxy coated MOV and tin plated copper wire leads.
- Ceramic body coated with tin plated copper lead and epoxy resin Rated transient current (8// 20 μs) and rated energy (2 ms)
Spec
- Quantity:1bag(1000pieces)
- Varistor Voltage : 430V
- Maximum AC Voltage Rating : 275V
- Maximum DC Voltage Rating : 350V
- Clamping Voltage : 710V
- Clamping Current : 10A
- Energy : 21J
- Series : Standard
- Diameter : 9mm
- Maximum Surge Current : 1200A
- Capacitance : 95pF
- Thickness : 4.4mm
- Dimensions : 9 (Dia.) x 4.4mm
- Lead Pitch : 5mm
- CODE No.:134-5686
