Electronic/Electrical Parts and Controll Equipments

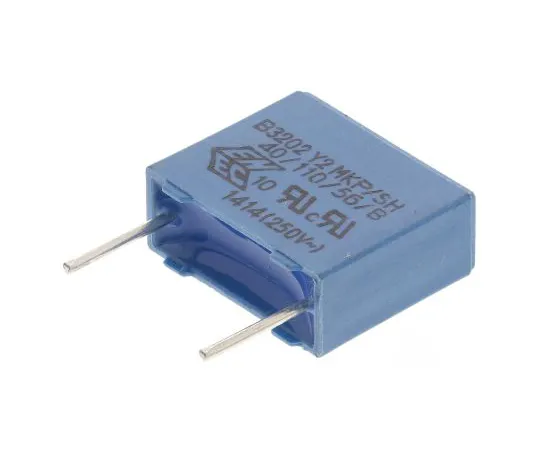

63-7040-30 Epcos 4.7nF Polypropylene Capacitor PP 300V ac ±20% Tolerance Through Hole B32021 Series B32021A3472M000
Product Description
Product Model: 63-7040-30Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7040-30
Product Brand: EPCOS
Features
- EN132400/IEC60384-14 (300 V AC) UL1414 (250 V AC) UL1283 (400 V AC) CSA C22.2 No. 1 (250 V AC) CSA C22.2 No. 8 (400 V AC)
- Designed for direct connection to the power distribution system, but cannot be ***d in locations where capacitor failure may result in electrical shock.
- B3202* Series
- Polypropylene structure of plastic case (UL94 V-0) and epoxy resin seal (UL94 V-0) Ultra-compact, excellent self-recovery, high voltage resistance Typical applications are Y2 class of interference suppression and line grounding, etc. Operating temperature: -40 → +110 °C
Spec
- Quantity:1bag(1000pieces)
- Capacitance : 4.7nF
- Voltage : 300V ac
- Mounting Type : Through Hole
- Tolerance : ±20%
- Series : B32021
- Lead Pitch : 10mm
- Length : 13mm
- Depth : 5mm
- Height : 11mm
- Dimensions : 13 x 5 x 11mm
- Dielectric : PP
- Terminal Type : Through Hole
- CODE No.:134-5678
