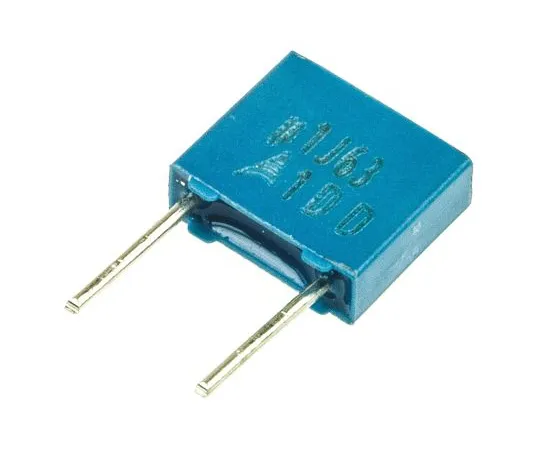

63-7040-28 Epcos 100nF Polyester Capacitor PET 40 V ac, 63 V dc ±5% B32529 Series Through Hole B32529C0104J000
Product Description
Product Model: 63-7040-28Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7040-28
Product Brand: EPCOS
Features
- Typical 32529 Application: High Contact Reliability Laminated Film Technology with RFI Pulse-Resistant Properties for General Block, Coupling, Decoupling, Bypass, Vehicle Use Epoxy Resin Sealed Plastic Case (UL94 V-0)
Spec
- Quantity:1bag(2000pieces)
- Capacitance : 100nF
- Voltage : 40 V ac, 63 V dc
- Mounting Type : Through Hole
- Lead Pitch : 5mm
- Series : B32529
- Tolerance : ±5%
- Dielectric : PET
- Length : 7.2mm
- Depth : 2.5mm
- Height : 6.5mm
- Dimensions : 2.5 x 6.5 x 7.2mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- Terminal Type : Through Hole
- CODE No.:134-5676
