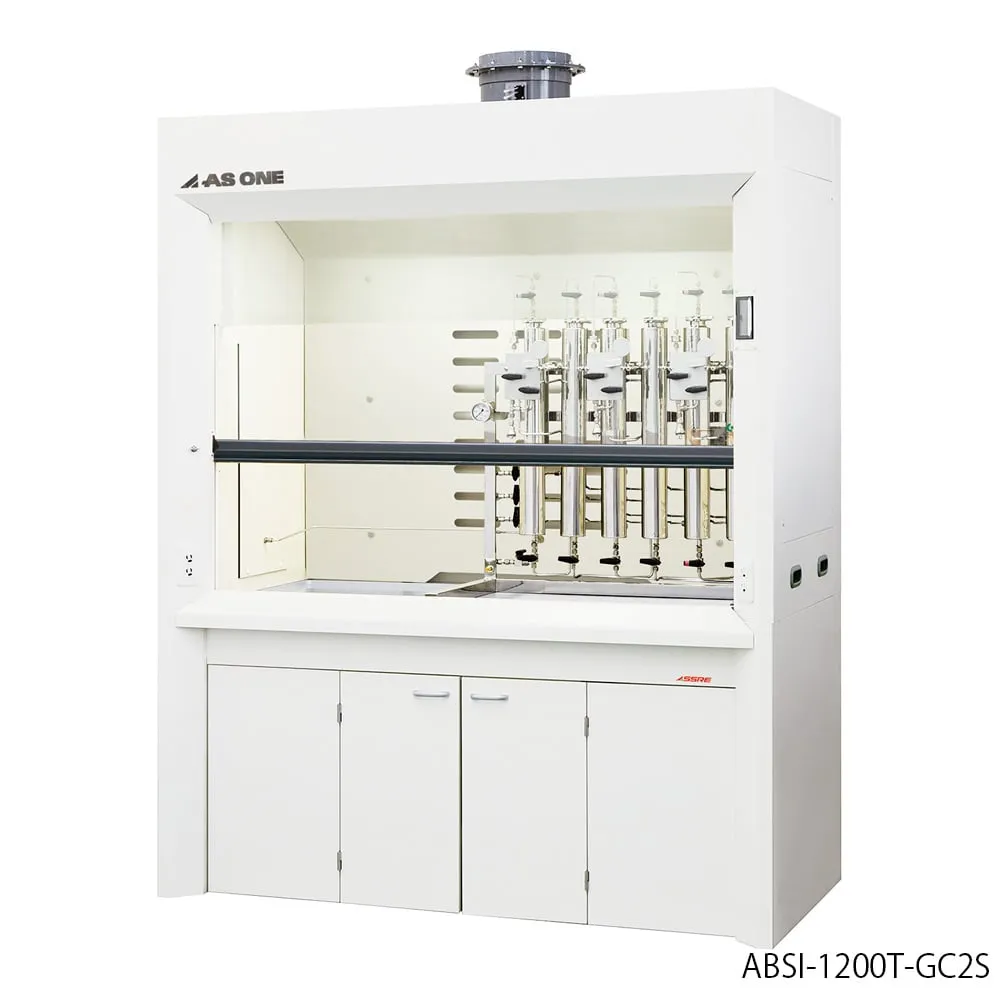

4-3403-11 Fume Hood (Model with Organic Solvent Purifier) 2 Solvent 1200 x 830 x 2250 mm ABSI-1200T-GC2S
Product Description
Product Model: 4-3403-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-3403-11
Product Brand: AS ONE Corporation
Features
- Fume hood equipped with organic solvent purification equipment.
- The folding door has a lock.
- Can dehydrate approximately 400 L with a special grade solvent.
- Can incorporate a stand that can handle from 2 to 5 solvents.
- A total of 35 solvents can be refined (please contact us for details).
- [Flow of Organic Solvent Purifier (GlassContour)]
- (1)Inert gas is introduced into the solvent tank.
- (2)The solvent tank is pressurized and the solvent enters the column.
- (3)A solvent passes through a column containing catalysts such as alumina and molecular sieves to remove water.
- (4)Remove the purified solvent by operating the valve on the control panel.
- For Organic
Spec
- External Dimensions (mm): 1200 x 830 x 2250
- Inner Dimensions (mm): 950 x 605 x 1200
- Number of solvents: 2
- Organic Solvent Purifier Size: 670 x 400 x 920 mm
- Control wind speed: 0.5 m/s (Opening height of sash at work: 400 mm)
- Material: Exterior/SPCC (Powder Coating Finish), Interior/Chemical-Resistant/Heat-Resistant Board, Organic Solvent Purifier/Stainless Steel (SUS304), Work Surface/Epoxy Resin Top Plate Integrally Molded Product (32 mm Thickness)
- Lifting Sash: Tempered Glass (5 mm Thickness), with Balance Weight Type Opening Limiting Key (Height 400 mm), Handle/ABS Resin
- Hydrant: 1 location
- Outlets: 2 (100 VAC 15 A with 2 connected grounding)
- lighting: LED fluorescent
- Operation Switch: Touch Panel Lighting/Fan
- safety features: exhaust airflow display
- Exhaust Connection: PVC (Vinyl Chloride Resin) Volume Damper Phase Flanged
- Power connection: Terminal block with electrical box
- [Exhaust]
- Air volume (m3/min): 13
- Duct Connection Port: 200 A
- Required Duct Diameter (φmm): 200
- [Ancillary Facilities]
- Fluorescent Lamp (Pieces): 20 W x 2 Lamps Equivalent
- Epoxy Top Plate: 270
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
- *Exhaust fan is not included. Please contact us.
