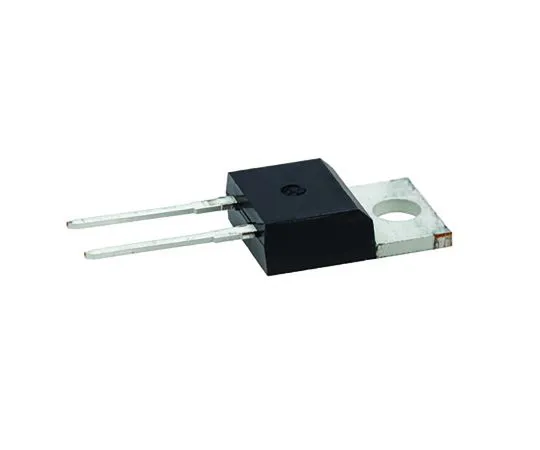

63-7037-17 Infineon 650V 60A, Diode, 2+Tab-Pin TO-220 IDP30E65D1XKSA1 IDP30E65D1XKSA1
Product Description
Product Model: 63-7037-17Product Brand: Infineon Featur […]
Contact Us
Product Details
Product Model: 63-7037-17
Product Brand: Infineon
Features
- Fast Switching Emitter Control Diode, Infineon
- The Infineon switching emitter control diode is a 600 V/1200 V ultra-soft diode of the Rapid 1 and Rapid 2 families. These diodes work in a variety of applications including communications, UPS, welding, and AC-DC, and the ultra-soft version works in motor drive applications up to 30 kHz.
- The Rapid 1 diode switches between 18 kHz and 40 kHz. Temperature stable forward voltage: 1.35 V Optimum for power factor correction (PFC) topologies Rapid 2 diodes switch between 40 kHz and 100 kHz. Low Reverse Recovery Charge: Forward Voltage for BiC PerformanceShort Reverse Recovery TimeLow Turn-On Loss for Boosted SwitchUltra High Speed Diode 600 V/1200 V Emitter Control TechnologySuperior to JEDEC StandardAnti-EMILow Conductive LossEasy Parallel Connection
Spec
- Quantity:1set(500pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 650V
- Mounting Type : Through Hole
- Package Type : TO-220
- Pin Count : 2+Tab
- Maximum Forward Voltage Drop : 1.7V
- Length : 10.2mm
- Width : 4.5mm
- Height : 15.95mm
- Power Dissipation : 143W
- CODE No.:133-8561
