Features

• 3 x Flexible Current Sensors, 2 x 1.5 V AA/LR6 Alkaline Batteries, 1 x User Manual in 5 Languages, 1 x Safety Data Sheet, 1 x Certificate, 1 set of Colored Ring for Cable Identification/Misconnection Prevention, 3 x Female BNC/4 mm Osplug Adapters

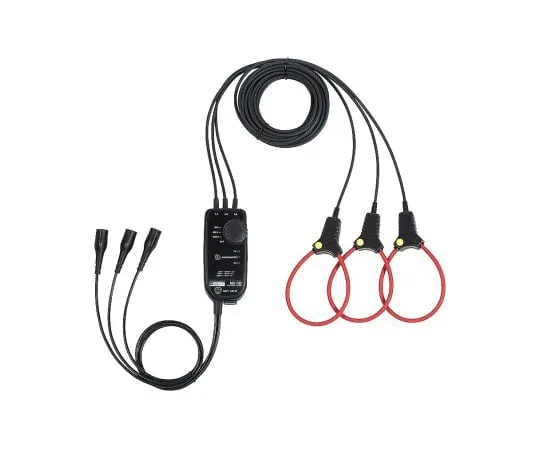

• Chauvin Arnoux MiniFLEX MA130 Series Small Flexible Current Sensors
• These compact, lightweight, ergonomic sensors of various calibers can clamp any type of conductor, regardless of number, size, or shape (bars, etc.). Its flexibility allows it to be ***d anywhere, no matter how narrow. Ideal for both industrial and tertiary sector requirements. Quick and easy opening and closing system allows easy handling even when wearing safety gloves.
• The MiniFlexR MA130 sensor features automatic standby and can be disabled at the start of a long-term measurement activity. It can be driven in two ways: battery or external power supply (standard μUSB socket). The controller has three LEDs (Green, Yellow, Red) that display battery status, auto-standby status, and overshoot of all management functions. The single-phase type consists of four measuring instruments, and the three-phase type consists of three measuring instruments.
• It consists of three flexible sensors that can be directly connected to any multimeter, power meter or logger. Key advantages of flexible coils:
• Large measurement range
• Bandwidth suitable for industrial frequency and harmonic analysis
• No saturation effects and no overheating
• Constant low phase shift suitable for power meter measurement
• Features and advantages: Measurement range: 0.5 A → 3 kA
• 3 measurement ranges
• Measurement loop length (enclosure diameter): 25 cm (O7 cm)
• Loop/non-spark protection rating: IP67/IP54
• Output signal: AC voltage
• 3 coaxial cables with 1 safety BNC connector each
• Power supply: 2 1.5 V AA batteries or external μUSB type B 5 V power supply
• Battery life: 500 hours
• 600 V CAT IV
