Features

• 1 x Flexible Current Sensor, 2 x 1.5 V AA Batteries/2 x LR6 Alkaline Batteries, 1 x User Manual in 5 Languages, 1 x Safety Data Sheet and 1 x Certificate of Authenticity

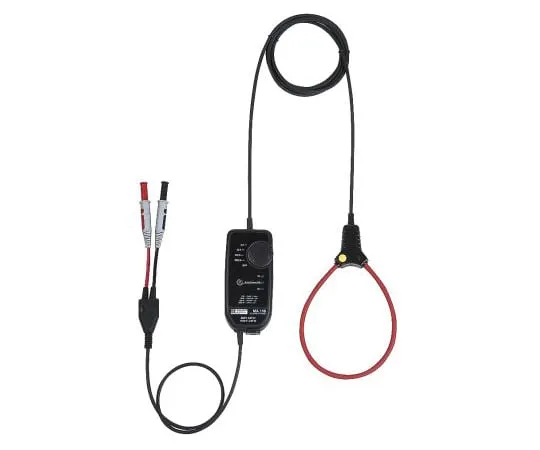

• Chauvin Arnoux MiniFlexR Current Sensor MA110 Series
• These compact, lightweight, ergonomic sensors of various calibers can clamp any type of conductor, regardless of number, size, or shape (bars, etc.). Its flexibility allows it to be used anywhere, no matter how narrow. Ideal for both industrial and tertiary sector requirements. Quick and easy opening and closing system allows easy handling even when wearing safety gloves.　The MiniFlexR MA110 sensor features automatic standby and can be disabled at the start of a long-term measurement activity. It can be driven in two ways: battery or external power supply (standard μUSB socket). The controller has three LEDs (Green, Yellow, Red) that display battery status, auto-standby status, and overshoot of all management functions. The single-phase type consists of four measuring instruments, and the three-phase type consists of three measuring instruments.
• It consists of three flexible sensors that can be directly connected to any multimeter, power meter or logger. Key advantages of flexible coils: Current measurement in inaccessible locationsLarge measurement rangeBandwidth suitable for industrial frequency and harmonic analysisNo saturation effects, constant low phase shift suitable for measuring power meters that do not overheat
• Features and advantages: Flexible single-phase current sensor
• Measurement range: 80 mA → 3 kA
• MA110 Sensor mounted with an O4 mm female banana plug
• 4 Measuring instruments
• Sensor length (Clamp O): 17 cm, 25 cm, 35 cm (O4.5 cm, O7 cm, O10 cm)
• Sensor/processor approach protection: IP67/IP54
• Output signal: AC voltage
• Output via 2-wire leads terminated by a 2 x O4 mm straight os-banana safety connector
• Power supply: 2 x 1.5 V AA batteries or external μUSB type B 5 V
• Battery life: 300 hours
• 600 V CAT IV
