63-7036-31　Calex PCAN201 Infrared Temperature Sensor, 1m Cable, -20°C to +1000°C　PCAN201
Electronic/Electrical Parts and Controll Equipments

63-7036-31　Calex PCAN201 Infrared Temperature Sensor, 1m Cable, -20°C to +1000°C　PCAN201

model: 63-7036-31
brand: Calex
category: Electronic/Electrical Parts and Controll Equipments

Product Description

Product Model: 63-7036-31Product Brand: Calex Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code
Online Consultation

Product Details

Product Model: 63-7036-31
Product Brand: Calex

Features

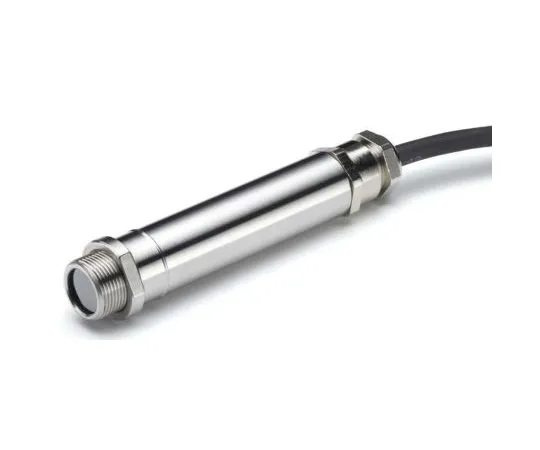

  • PyroCAN Infrared Temperature Sensor
  • Calex PyroCAN series infrared temperature sensor measures the surface temperature and transmits it via CAN bus using Raw CAN protocol.　This sensor can be connected to a network that contains many PyroCAN sensors and other types of CAN devices. Easily connect to an existing network with a configurable CAN ID.
  • Features and benefits: CAN bus interfaceTemperature range: -20 to 1000 °CRaw CAN protocolCan set CAN IDEAdjustable emissivity settingIncludes 1 meter cable

Spec

  • Quantity:1piece
  • Response Time : 200 ms
  • Accuracy : ±1°C or ±1% of reading
  • Cable Length : 1m
  • Minimum Temperature Sensed : -20°C
  • Maximum Temperature Sensed : +1000°C
  • Diameter : 16 mm
  • Termination Type : Cable
  • CODE No.:133-6338
