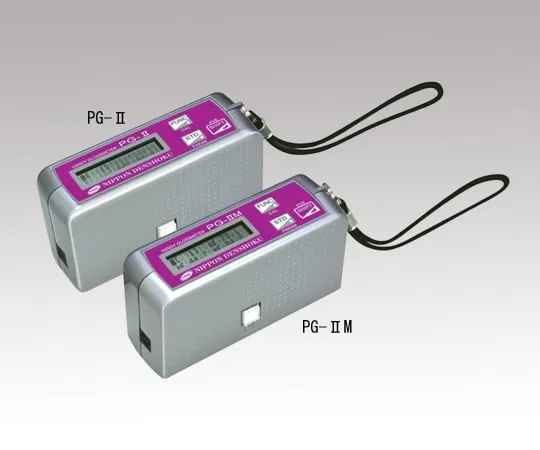

1-2487-02 Gloss Meter (Multi-Angle) PG-IIM
model:
1-2487-02
category:
toner
Product Description
Product Model: 1-2487-02 Features Conform to various in […]
Contact Us
Product Details
Product Model: 1-2487-02
Features
- Conform to various industrial standards such as JIS and ISO.
- Equipped with automatic sensitivity switching function, it can measure even mirror and high-gloss samples instantly.
Spec
- Model number: PG-02M (multi angle)
- Measurement angle: 20, 60, 85° (3 points simultaneous)
- Measurement range: 20°/0.1 - 2038G%, 45°/0.1 - 1675G%, 60°/0.1 - 1000G%, 75°/0.1 - 378G%, 85°/0.1 - 162G%
- Light source: Tungsten lamp/5V 125mA
- Function: Standard value setting, flat equalizing value
- Memory: 400 data
- Interface: RS232C
- Power supply: 006P (9V) dry cell x 1 piece (optional)
- Size: 150 x 49.2 x 80mm
- Weight: 420g (excluding cell)
- JIS Z 8741・ISO 2813・ASTM 0523 compliant
- Handy type
