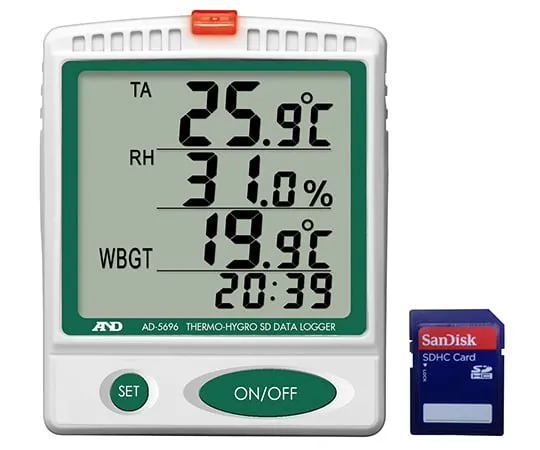

1-2400-01 Digital Thermo-Hygro SD Data Logger AD-5696
Product Description
Product Model: 1-2400-01Product Brand: A&D Features […]
Contact Us
Product Details
Product Model: 1-2400-01
Product Brand: A&D
Features
- [Applications]
- Storage temperature and humidity control for foods and materials, storage temperature and humidity control for chemicals and medical materials, temperature and humidity control for biomaterials and bacterial cultures, storage temperature and humidity control for chemicals and industrial raw materials, temperature and humidity control for dryers
- [Features]
- Data recorder that can easily record and analyze temperature, humidity, heat stroke index, etc.
- Storage temperature, humidity, heat stroke index, date and time on SD card
- SD card with 1GB of free space can record data for 30 years or more.
- Alarms can be set for upper and lower limits of temperature, humidity, and heat stroke index
- Data can be saved in text format and easily processed on a computer
Spec
- Model number: AD5696
- Measurement range (temperature/humidity): 0 - 50℃/20 - 90%RH
- Minimum display (temperature/humidity): 0.1℃/0.1%RH
- Accuracy: Temperature/+/- 1℃, Humidity/±5%RH (30.0 - 70.0%RH), ±10%RH (other) 25℃
- Display: Temperature (temperature TA), humidity (RH), WBGT index, time
- WBGT index display range: -2 to +62℃
- Data recording capacity: Maximum 30000 points per file
- Measurement interval: 1 - 720 minutes (setting available per 1 minute unit)
- Power supply: DC5V 500mA AC adapter (included) or AA alkaline dry cell x 3 pieces (optional)
- Size: 91 x 30 x 110mm
- Weight: Approx 140g
- With SD card (for test)
- RoHS3 (EU)2015/863 Certificates can be issued
