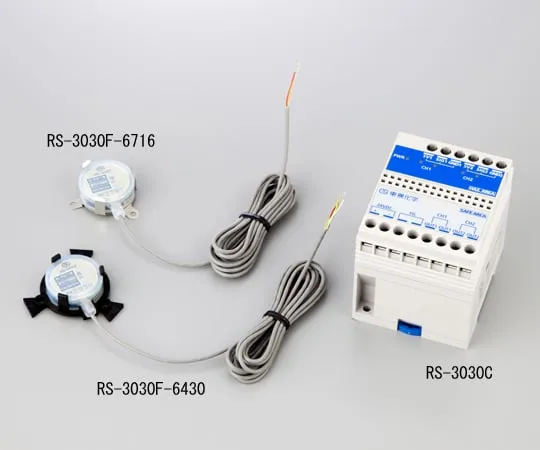

1-2363-01 Explosion-Proof Leak Sensor RS-3030F-6716
model:
1-2363-01
category:
toner
Product Description
Product Model: 1-2363-01 Features The optical system en […]
Contact Us
Product Details
Product Model: 1-2363-01
Features
- The optical system enables "Honan" type verification and reliable leak detection.
- Since it is spot detection, it is easy to identify the leakage place.
- Since special conductive bands and fibers are not ***d, installation and construction is easy.
Spec
- Model number: RS-3030F-6716
- Detection unit
- Mounting tool material: Stainless steel (SUS306)
- LED display: Normal/green light, Liquid spill detection/red light,
- Signal output: NPN Open collector
- Power supply: DC + 5V
- Material: Body/PFA (fluororesin), Cable/FEP (fluororesin)
- Size: Detection unit/φ32 x 13.5mm, Cable length/2m
- Dustproof, waterproof: Equivalent to IP67
